Manual wheelchair Küschall Champion black frame man on the bridge

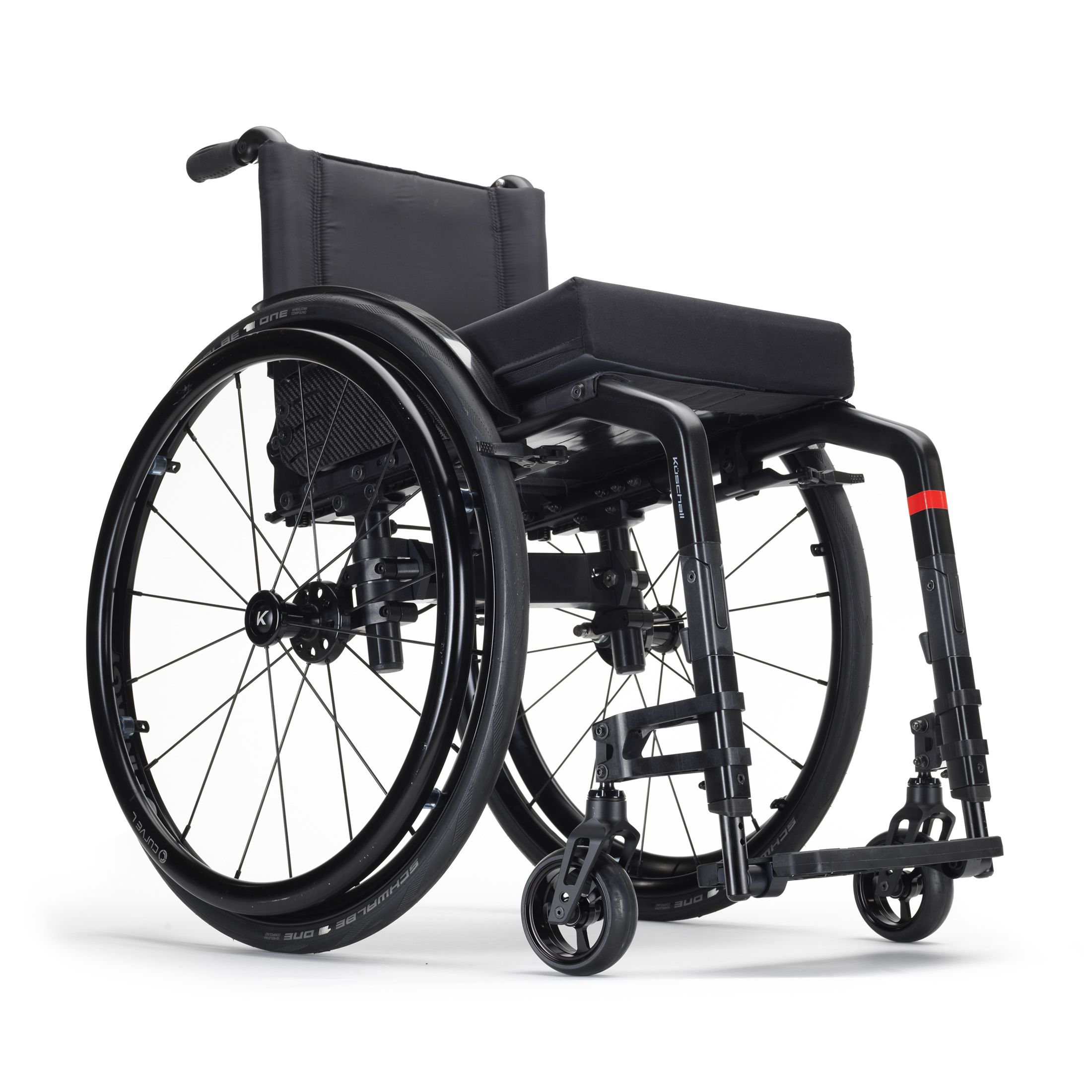

The Küschall Champion delivers optimal functionality to users. This manual wheelchair is foldable with the rigidity of a fixed frame – this gives users an incredible driving performance. Küschall Champion is simply the perfect travel companion for your adventures. It can be folded trimly with the unique designed folding mechanism, and with the SK (Swiss knife-folding) option, the wheelchair can be folded even smaller. Now available as one order. one delivery. onesolution. Discover more in our interactive brochure


Küschall Champion 2.0 | lichtgewicht rolstoel
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black and red frame
Manual wheelchair Küschall Champion black frame
Küschall Champion 2.0 1
Küschall Champion 2.0 2
Küschall Champion 2.0 3
Küschall Champion 2.0 4
Küschall Champion 2.0 5
ONE-SOLUTION-CHAMPION-CV04
Küschall Champion 2.0 | lichtgewicht rolstoel
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black and red frame
Manual wheelchair Küschall Champion black frame
Küschall Champion 2.0 1
Küschall Champion 2.0 2
Küschall Champion 2.0 3
Küschall Champion 2.0 4
Küschall Champion 2.0 5
ONE-SOLUTION-CHAMPION-CV04
Küschall Champion 2.0 | lichtgewicht rolstoel
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black frame
Manual wheelchair Küschall Champion black and red frame
Manual wheelchair Küschall Champion black frame
Küschall Champion 2.0 1
Küschall Champion 2.0 2
Küschall Champion 2.0 3
Küschall Champion 2.0 4
Küschall Champion 2.0 5
ONE-SOLUTION-CHAMPION-CV04

Küschall Champion has an innovative lightweight hydroformed frame that makes it function optimally. Also, Champion is equipped with a unique folding and locking mechanism. The locking mechanism is at the heart of the Champion. The folding front frame makes it easy to close – integrates perfectly with the lines obtained with hydroforming.

It features a new footrest that flawlessly adapts to the new design language of the portfolio. Clear-cut shapes and contours to give the best geometry to the whole wheelchair, keeping its technical benefits unaltered. Küschall Champion is also small to the size of a backpack such that you can easily travel with it.

Below are some key features of the Invacare Küschall Champion:

  • Foldable: Küschall Champion can be folded compactly base on individuals’ desire. Users can decide to fold to a tiny size for travelling purposes.

  • New Light Active brake: It features a new Light Active brake, designed with modern lines and lighter by almost one third compared to other models.

  • Hydroforming: Strength, lightness and rigidity. The hydroformed front frame on the Kuschall Champion enhances driving performance, increasing the stiffness and enabling effortless transfers with the ergonomic grip.

  • Footrest: It features a new footrest that flawlessly adapts to the new design language of the portfolio.

  • Available in four different colours: Küschall Champion s available in different colours. Users have options to pick from the one that appeals most to them.

  • Durable: It is designed with excellent quality materials to last.

Scissor mechanism
Scissor mechanism

Perfectly engineered, the result is a hybrid wheelchair: foldable but with the stiffness and rigidity of a fixed frame

Folding Unit
Folding Unit

One unit to adjust the centre of gravity in 9 different seat positions, rear seat height and 5 different possibilities on how to mount the adapter for different set ups

Swiss knife
Swiss knife

Simply fold the main frame and make the chair super compact with the unique designed folding mechanism, for easy transportation or travel

Keep on track
Keep on track

Intuitive castor housing adjustment, excellent in keeping the direction steady

Customization
Customization

Unparalleled concept, achieved through the combination of modern frame painting with elegant decals in different shapes and colors. The result is an aesthetically unique wheelchair

One Solution
One solution

Bringing together some of our very best wheelchair and seating brands to create winning combinations. Recommended by healthcare professionals and available as one order and one delivery.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Award-winning 3D Visualizer
Configure your new Küschall down to the last detail.
Watch your new Küschall wheelchair take shape, configure it the smallest details and have fun, the power is in your hands.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

360 – 480 mm in increments of 20 mm

Seat depth

Seat depth

340 – 480 mm in increments of 20 mm

Seat height

Seat height

front: 450 – 540 mm rear: 390 – 490 mm stepless adjustable

Knee-to-heel length

Knee-to-heel length

320 – 500 mm stepless adjustable

Backrest angle

Backrest angle

76° / 80.5° / 85° / 89.5° / 94°

Backrest height

Backrest height

300 – 465 mm in increments of 15 mm

Front frame angle

Front frame angle

75° / 90° straight or tapered

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 160 mm

Total width folded

Total width folded

approx. 280 mm

Total length

Total length

75° frame angle: approx. 825 – 1190 mm; 90° frame angle: approx. 775 – 1140 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

120 kg

Total weight

Total weight

approx. 9.2 kg

Transport weight

Transport weight

approx. 6.7 kg

Frame colour

Frame colour

SPACE BLACK,ANTHRACITE GREY,PURE WHITE,CARMINE RED,AZURE BLUE,BLACK GLOSSY,FERRITE,SLATE METALLIC,SILVER GREY,ROYAL BLUE,RUBY RED,SMOKY GREY,DYNAMITE ORANGE,FOREST GREEN,
