Invacare ScanBeta NG paediatric bed

Visit the microsite
Visit the microsite

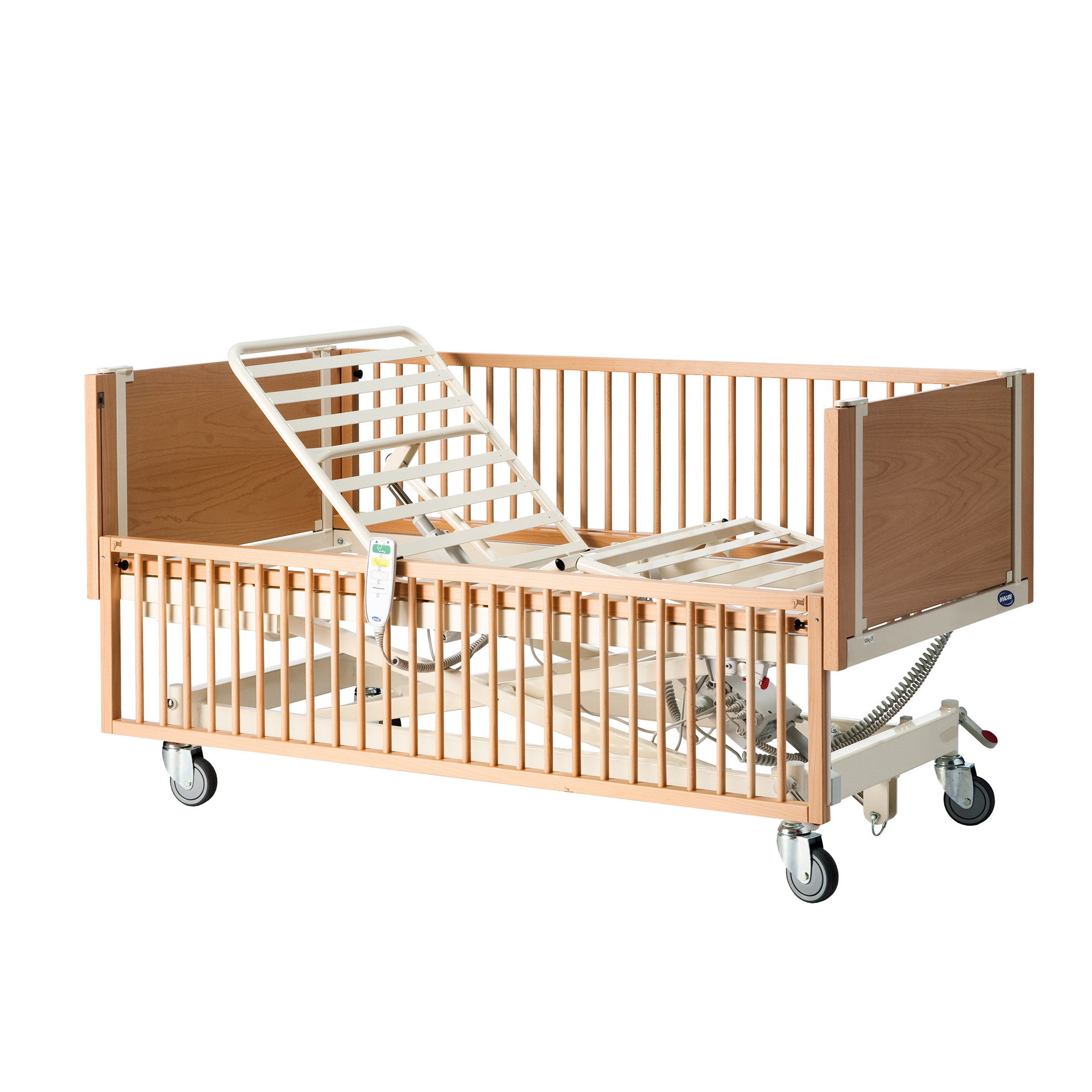

Invacare ScanBeta NG Paediatric Bed
Discontinued product Discontinued product

This product is no longer available. Discover the NordBed Kid paediatric bed, click here

    cover|SCANBETANG CV09-70x160.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG CV12-60x140.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG OF27.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG OF29.jpg|The Invacare ScanBeta NG Paediatric Bed
    benefit|SCANBETANG-BE01.jpg|The Invacare ScanBeta NG Paediatric Bed
    benefit|SCANBETANG-BE03.jpg|The Invacare ScanBeta NG Paediatric Bed
    benefit|SCANBETANG-BE04.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG CV09-70x160.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG CV12-60x140.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG OF27.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG OF29.jpg|The Invacare ScanBeta NG Paediatric Bed
    benefit|SCANBETANG-BE01.jpg|The Invacare ScanBeta NG Paediatric Bed
    benefit|SCANBETANG-BE03.jpg|The Invacare ScanBeta NG Paediatric Bed
    benefit|SCANBETANG-BE04.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG CV09-70x160.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG CV12-60x140.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG OF27.jpg|The Invacare ScanBeta NG Paediatric Bed
    cover|SCANBETANG OF29.jpg|The Invacare ScanBeta NG Paediatric Bed
    benefit|SCANBETANG-BE01.jpg|The Invacare ScanBeta NG Paediatric Bed
    benefit|SCANBETANG-BE03.jpg|The Invacare ScanBeta NG Paediatric Bed
    benefit|SCANBETANG-BE04.jpg|The Invacare ScanBeta NG Paediatric Bed
    Product Comparator
    Compare
    Cancel Compare
    Bed sections length
    Bed sections length
    The optimized lengths of the sections are based on anthropometrical measurements of children. The 3 sizes of ScanBetaNG Standard have been developed specifically for children aged between 3 and 12 years old.
    Handset
    Handset
    A slim and ergonomic handset comes with an individual lockable function for increased safety.
    Easy lock and removal
    Easy lock and removal
    Snap lock for quick and easy removal of the mattress support from the bed frame.
    Support handle
    Support handle
    Makes getting in and out of bed much easier.
    Lifting Pole
    Lifting Pole
    The handle can be adjusted both in height and depth.
    Upholstery
    Upholstery
    20 mm thick upholstery for the bed end and all versions of sides/side rails.
    Sales Offices contact Show your sales offices contact

    Leave us a message

    We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

    Find your Sales Contact
    Specifications & Downloads
    Technical data
    Technical data
    Width

    Width

    Outside: 680 mm Inside: 620 mm

    Length

    Length

    Outside: 1480 mm Inside: 1420 mm

    Height adjustment

    Height adjustment

    320 - 920 mm

    Mattress support dimensions

    Mattress support dimensions

    620 - 70 - 210 - 460 mm

    Backrest angle

    Backrest angle

    0 - 73°

    Thigh angle

    Thigh angle

    0 - 36°

    Legrest lift

    Legrest lift

    0 - 26°

    Total weight

    Total weight

    SWL 100 kg 70 kg

    Frame colour and wood work

    Frame colour and wood work

    Pearl white, Beech

    User Manual (20)
    User Manual (20 archives)
    Manuel d'utilisation Invacare Scanbeta NG (11.48 MB)
    Invacare ScanBeta NG gebruikershandleiding (11.48 MB)
    Scanbeta NG Paediatric bed User manual en (4.25 MB)
    Scanbeta NG Paediatric bed User manual sv (4.12 MB)
    User manual - Beds - ScanBeta NG (808.93 KB)
    Manual do utilizador (3.87 MB)
    Scanbeta NG Paediatric bed User manual Dutch (4.11 MB)
    Invacare Scanbeta NG -User manual (4.17 MB)
    Brukermanual ScanBeta NG (807.01 KB)
    Bruksanvisning Stöd- och vändhandtag Scanbeta (592.97 KB)
    Scanbeta NG Paediatric bed User manual Italian (4.12 MB)
    Brugermanual ScanBeta NG (800.2 KB)
    Instructions de montage pour mécanisme de verrouillage Scanbeta NG (344.59 KB)
    Invacare ScanBetaNG Paediatric Bed User manual (4.17 MB)
    Monteringsanvisning Låsbeslag grind ScanbetaNG (178.23 KB)
    Monteringsanvisning Låssprint grind ScanbetaNG (134.61 KB)
    Monteringsanvisning Polstring (167.11 KB)
    ScanbetaNG Polstring modeller (88.82 KB)
    Scanbeta NG Paediatric bed User manual fr (4.14 MB)
    Invacare Sonata User manual Portuguese_es (9.2 MB)
    Service Manual (1)
    Service Manual (1 archive)
    Servicemanual ScanBeta NG montering låseskrue (344.9 KB)
    Test & Certificates (1)
    Test & Certificates (1 archive)
    Invacare Scanbeta NG Declaration of Conformity (203.65 KB)
