The NordBed Ultra by Invacare adapts easily to suit a range of clients requirements – especially for people with dementia and those who are more dependent on others. It is easily adaptable and comes with a homely aesthetic feel that makes it ideal for the atmosphere of a nursing home. It also comes with an advanced built-in auto-regression that makes it strong enough to withstand all forms of pressure when you try bringing your client to a sitting position. It enhances mobilization while ensuring independence and meeting the future needs of the client. NordBed Ultra is indeed the advanced care-bed every care staff and their clients need.

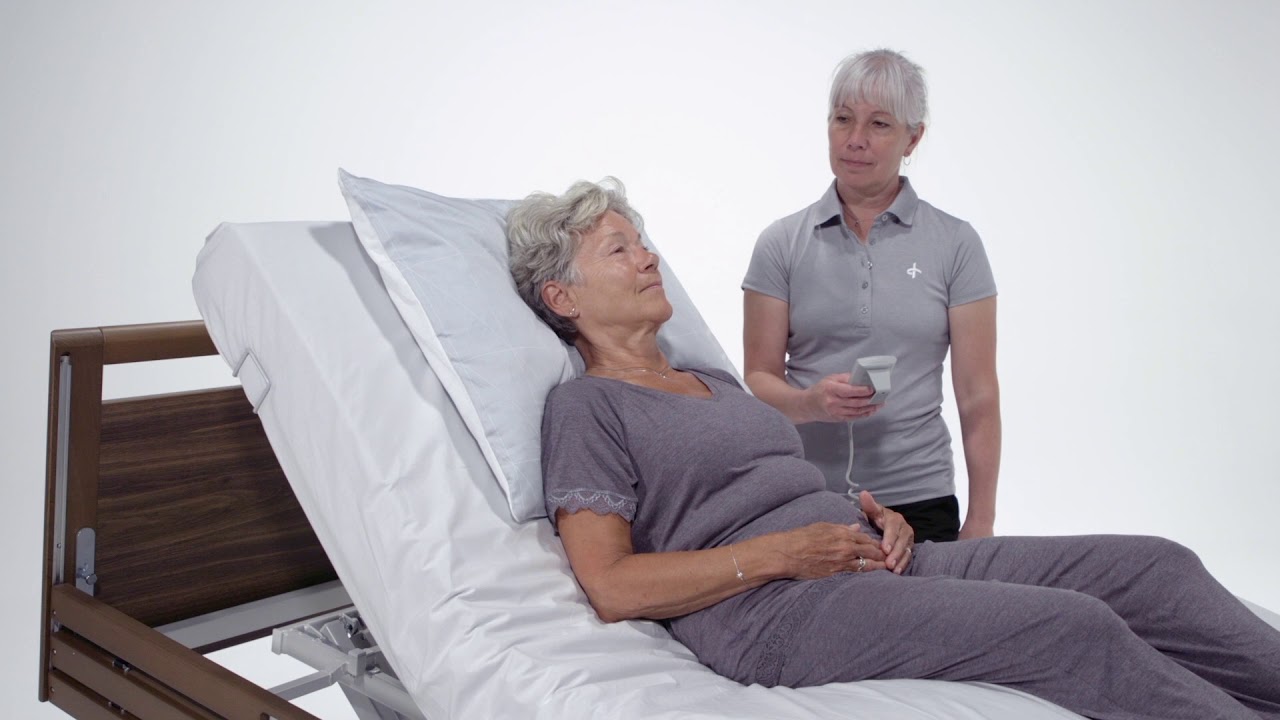

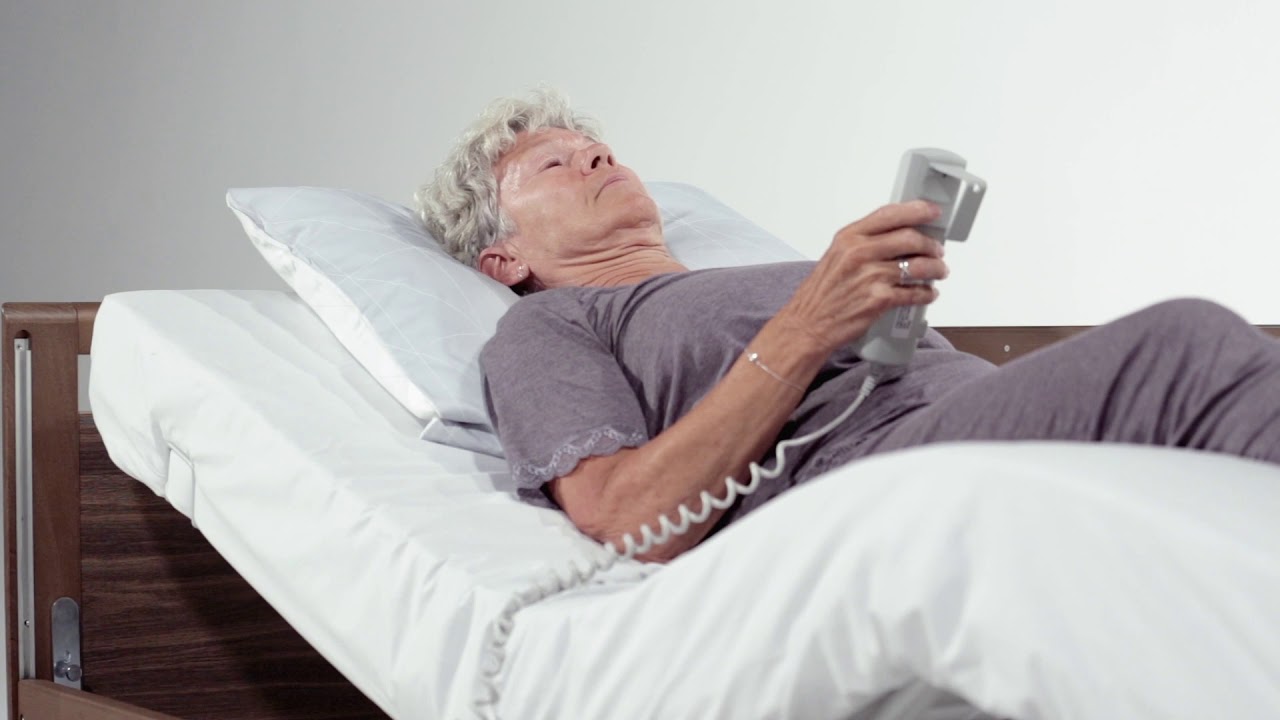

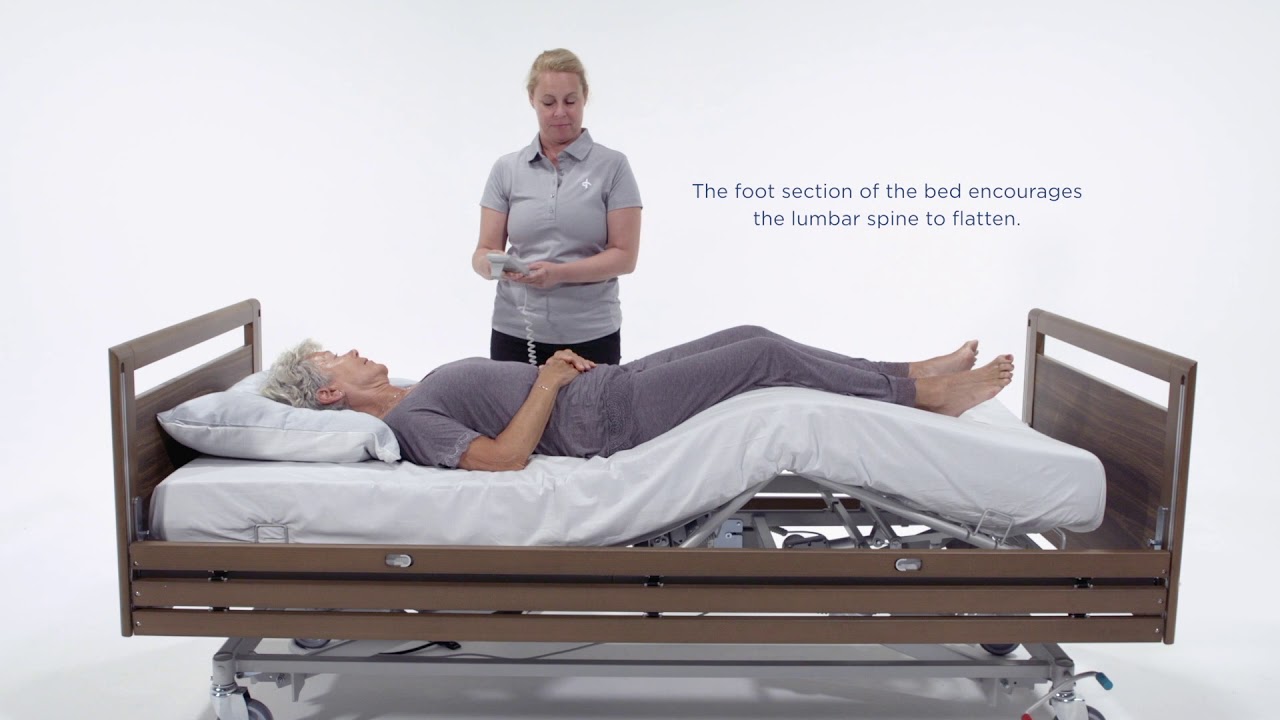

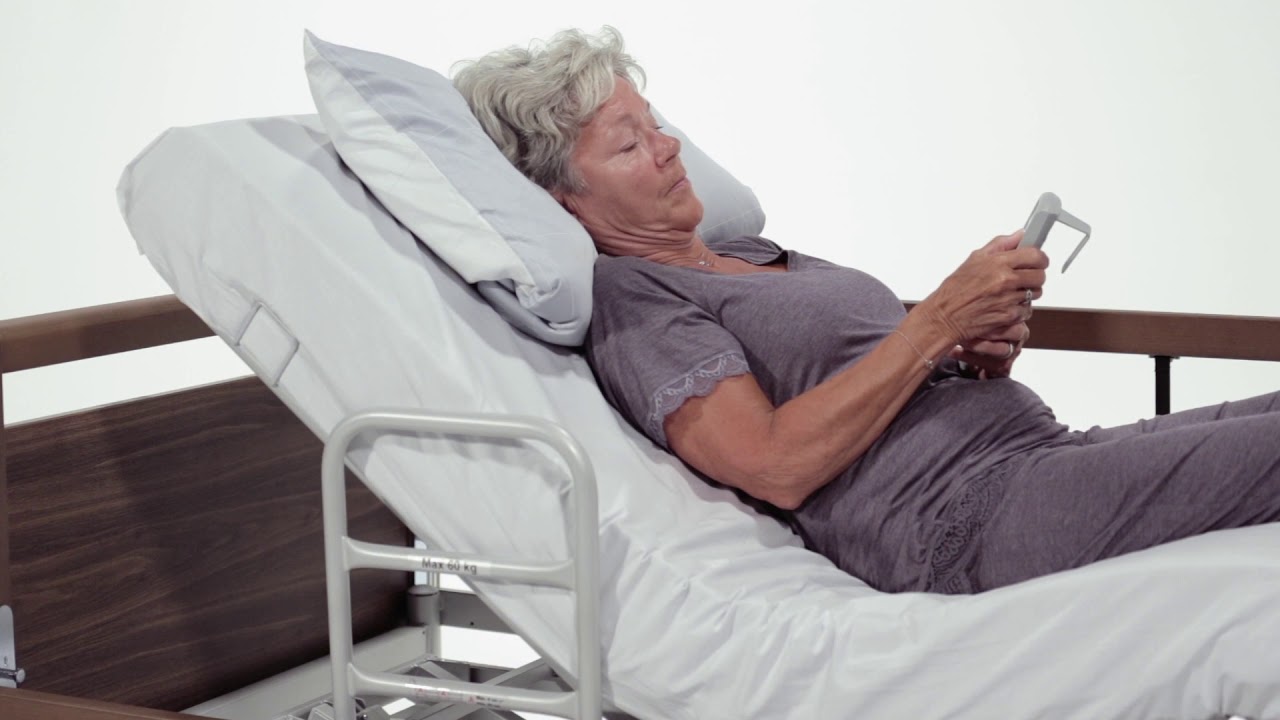

You won’t have to worry about getting your clients to a sitting or lying position. The Invacare NordBed Ultra comes with ErgoMove technology that makes it super-easy to move your client from an active sitting position to a lying position and back again to the active position with just a push of a button. The active sitting position facilitates the client’s function, such as drinking, eating, and reading, while ensuring proper pressure distribution. The movement sequence of the Invacare NordBed Ultra ensures the knee break and the backrest match as closely as possible to the body’s natural knee and hip pivot points. This ensures that the client stays in position and not slides down the bed.

cover|NORDBED-ULTRA-CV01.jpg|The Invacare NordBed Ultra medical bed
benefit|Nordbed3-846x476.jpg|The Invacare Nordbed Ultra Medical Bed with beech woodwork
cover|NORDBED-ULTRA-CV02.jpg|The Invacare Nordbed Ultra Medical Bed
cover|NORDBED-ULTRA-CV04.jpg|The Invacare Nordbed Ultra Medical Bed
cover|NORDBED-ULTRA-CV071.jpg|The Invacare Nordbed Ultra Medical Bed
cover|NORDBED-ULTRA-CV18.jpg|The Invacare Nordbed Ultra Medical Bed
benefit|Nordbed2-846x476.jpg|The Invacare NordBed Ultra medical bed Umber finish
benefit|Nordbed4-846x476.jpg|The Invacare Nordbed Ultra Medical Bed with green cover
Nordbed ultra 1
Nordbed ultra 2
Nordbed ultra 3
Nordbed ultra 4
Nordbed ultra 6
Nordbed ultra 7
NORDBED ACC OF36
cover|NORDBED-ULTRA-CV01.jpg|The Invacare NordBed Ultra medical bed
benefit|Nordbed3-846x476.jpg|The Invacare Nordbed Ultra Medical Bed with beech woodwork
cover|NORDBED-ULTRA-CV02.jpg|The Invacare Nordbed Ultra Medical Bed
cover|NORDBED-ULTRA-CV04.jpg|The Invacare Nordbed Ultra Medical Bed
cover|NORDBED-ULTRA-CV071.jpg|The Invacare Nordbed Ultra Medical Bed
cover|NORDBED-ULTRA-CV18.jpg|The Invacare Nordbed Ultra Medical Bed
benefit|Nordbed2-846x476.jpg|The Invacare NordBed Ultra medical bed Umber finish
benefit|Nordbed4-846x476.jpg|The Invacare Nordbed Ultra Medical Bed with green cover
Nordbed ultra 1
Nordbed ultra 2
Nordbed ultra 3
Nordbed ultra 4
Nordbed ultra 6
Nordbed ultra 7
NORDBED ACC OF36
cover|NORDBED-ULTRA-CV01.jpg|The Invacare NordBed Ultra medical bed
benefit|Nordbed3-846x476.jpg|The Invacare Nordbed Ultra Medical Bed with beech woodwork
cover|NORDBED-ULTRA-CV02.jpg|The Invacare Nordbed Ultra Medical Bed
cover|NORDBED-ULTRA-CV04.jpg|The Invacare Nordbed Ultra Medical Bed
cover|NORDBED-ULTRA-CV071.jpg|The Invacare Nordbed Ultra Medical Bed
cover|NORDBED-ULTRA-CV18.jpg|The Invacare Nordbed Ultra Medical Bed
benefit|Nordbed2-846x476.jpg|The Invacare NordBed Ultra medical bed Umber finish
benefit|Nordbed4-846x476.jpg|The Invacare Nordbed Ultra Medical Bed with green cover
Nordbed ultra 1
Nordbed ultra 2
Nordbed ultra 3
Nordbed ultra 4
Nordbed ultra 6
Nordbed ultra 7
NORDBED ACC OF36

The bed effectively supports single-handed care as the intuitive feature reduces the need for you to reposition the client. It has optimized mattress length support sections that are set following the anthropometric measurements. That way, the profiling sections perfectly fit and support most adults.

Key features include:

  • ErgoMove technology: This makes it super easy to bring clients to a comfortable, active sitting position and back to a horizontal position without any need for repositioning the client. It also reduces shear.
  • 25 cm lowest height: Comes with 10cm standard castors in order to make transfers easier while increasing fall prevention.
  • Up-and-Out: This allows smooth and safe transfers while supporting ergonomic movement.
  • Optimized dimensions of mattress support: This is set in line with anthropometric measurements to further increase comfort.
  • Integrated extendable mattress platform: Comes with an extra 10cm at the foot and head ends to adjust to client’s needs and requirements easily.
  • Under-bed light: Easy to turn on the light, fall prevention/safety.

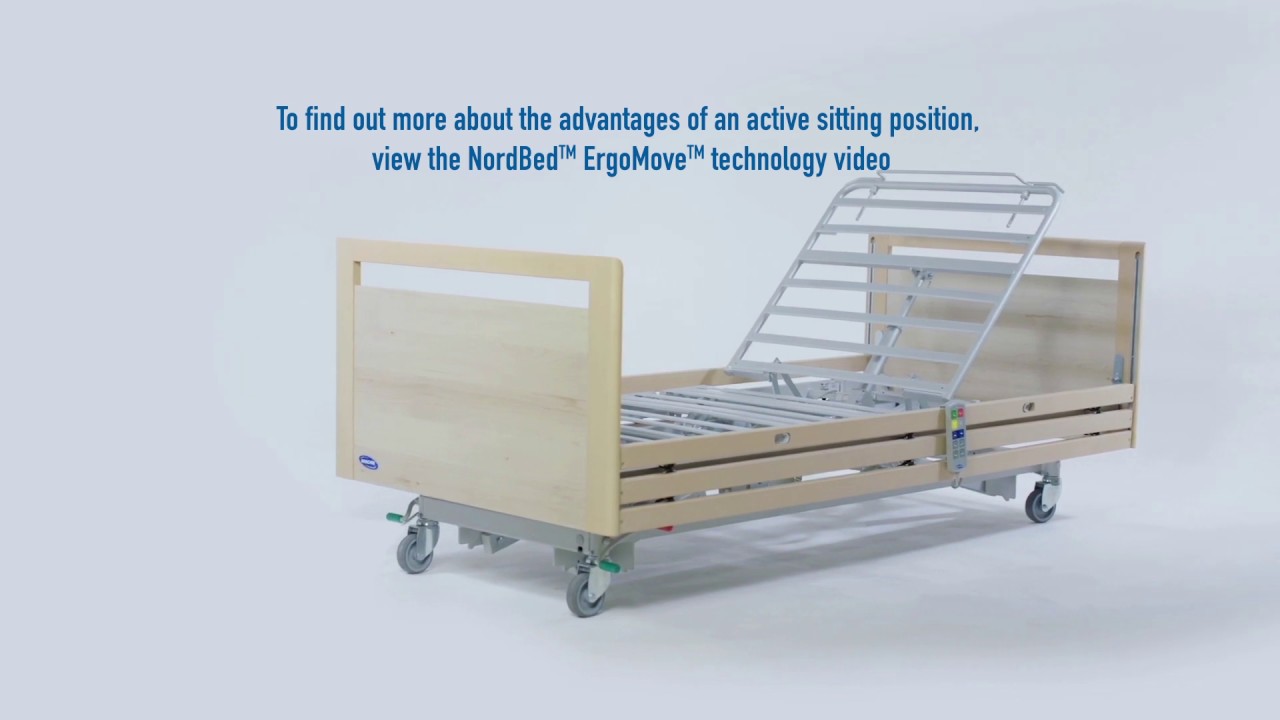

ErgoMove technology
ErgoMove technology
Brings the client to a comfortable sitting position and back to a horizontal position without pushing the client downwards and without the need of repositioning; Reduces shear

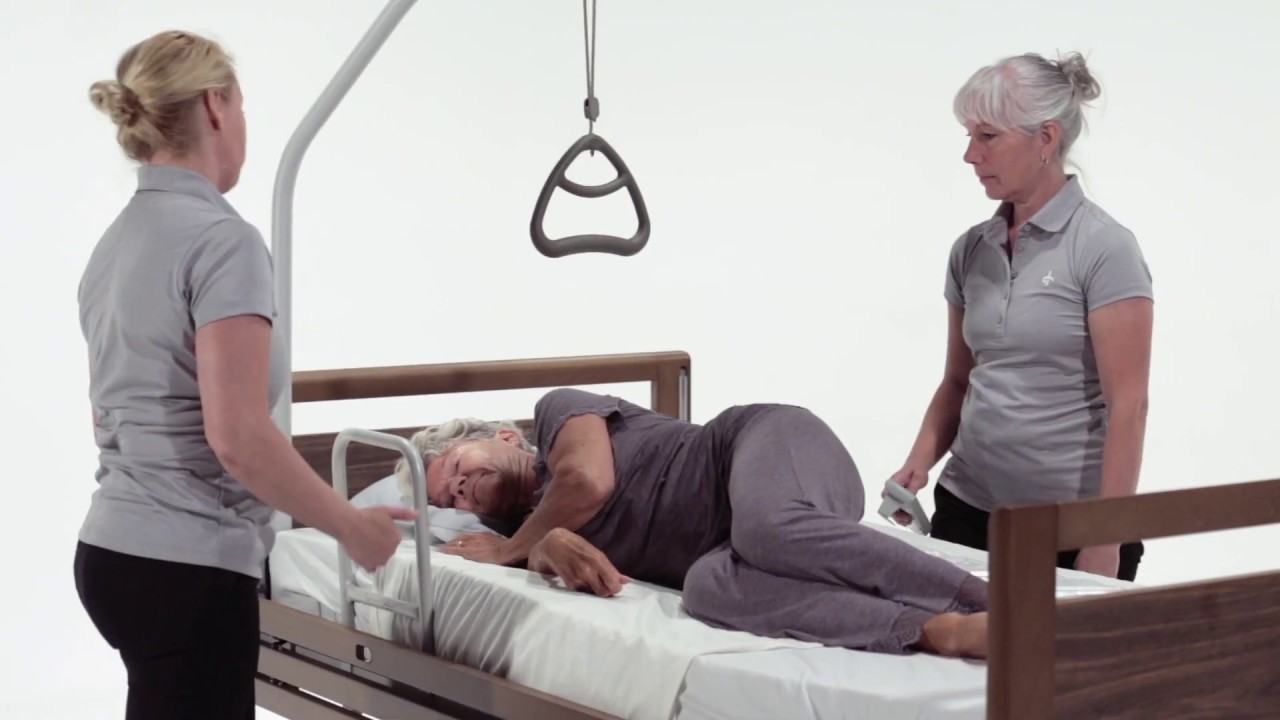

Up-and-Out
Up-and-Out
Allows safe and smooth transfers. Supports the ergonomic movement
25 cm lowest height
25 cm lowest height
With standard castors at 10 cm to allow safe transfers and increase fall prevention
Optimised dimensions
of mattress support
Optimised dimensions
of mattress support
According to anthropometric measurement, for increased comfort
Remember Me
Remember Me

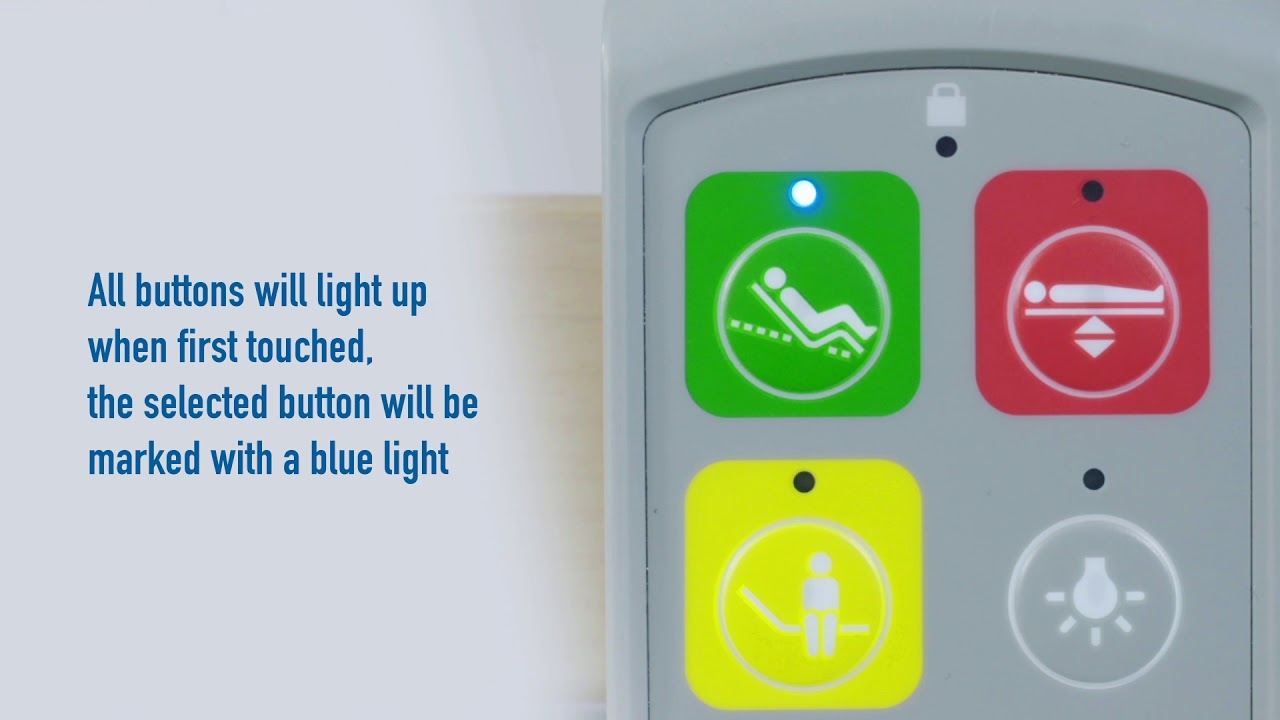

The ErgoMove and the Up-and-Out feature can be programmed to the clients preferred position and height for smaller or taller clients.
Modern design
Modern design

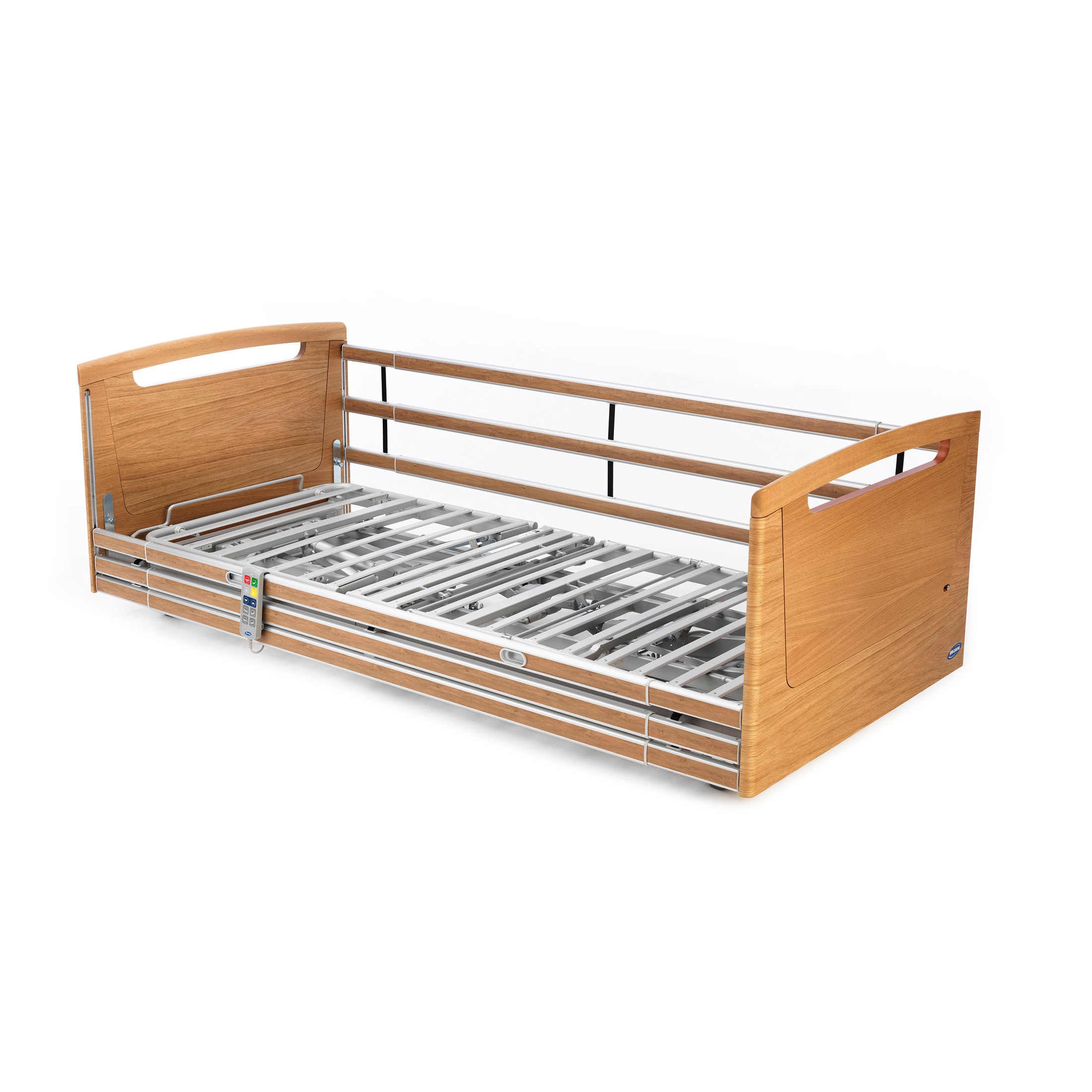

The NordBed Range is available in a variety of modern bed end styles, wood finishes and painted surfaces. Depending on the need and personal taste, NordBed Ultra can be configured with side panels, side rails and more
By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Technical data
Technical data
Width

Width

Outside: 1000 mm Inside: 900 mm Mattress: 880/900 mm

Length

Length

Outside / Inside: 213 / 200 cm

Height adjustment

Height adjustment

25 - 85 cm

Mattress support dimensions

Mattress support dimensions

80-17-30-65 cm

Ground clearance

Ground clearance

15 cm

Backrest angle

Backrest angle

0 - 70°

Thigh angle

Thigh angle

0 - 49°

Legrest lift

Legrest lift

0 - 19°

Anti-Trendelenburg / Trendelenburg

Anti-Trendelenburg / Trendelenburg

+/- 15°

Max. User weight

Max. User weight

200 kg

Total weight

Total weight

(wihtout bed ends) 105 kg

The heaviest part

The heaviest part

55 kg

Washable in washing machine

Washable in washing machine

Yes

Frame colour and wood work

Frame colour and wood work

Aluminium grey, Beech, Oak, Umber, Beech/pale blue, Pale blue, White

Side rails models

Side rails models

Embla, Freya and Ane side rails
