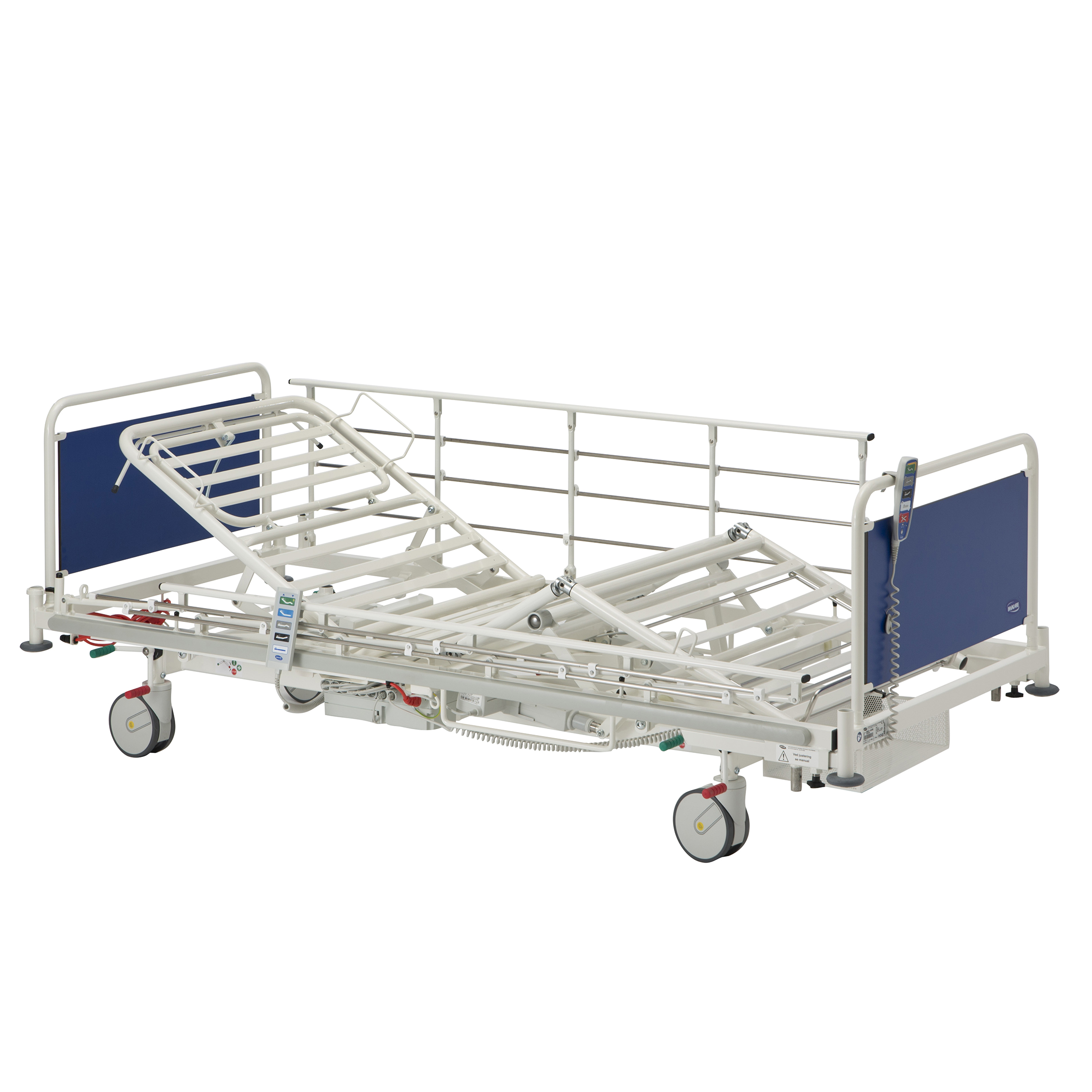

inspirational|SB910 BE08-2.jpg|The Invacare SB910 Hospital Bed

SB 910 by Invacare is designed with excellent features that ensure support, comfort and safety for clients. It is equipped with an ergonomic design that provides ease of use and good working conditions for the carer.

The bed comes with user-friendly features – including a synchroniser function operated by a green button on the hand control. This allows the backrest and knee break to be operated at the same time – reducing shear and friction while profiling.

cover|SB910 CV05.jpg|The Invacare SB910 Hospital Bed
feature|SB910 OF16.jpg|The Invacare SB910 Hospital Bed
feature|SB910 OF24.jpg|The Invacare SB910 Hospital Bed
benefit|SB910-BE14.jpg|The Invacare SB910 Hospital Bed
benefit|SB910-BE15.jpg|The Invacare SB910 Hospital Bed
cover|SB910 CV05.jpg|The Invacare SB910 Hospital Bed
cover|SB910 CV05.jpg|The Invacare SB910 Hospital Bed
feature|SB910 OF16.jpg|The Invacare SB910 Hospital Bed
feature|SB910 OF24.jpg|The Invacare SB910 Hospital Bed
benefit|SB910-BE14.jpg|The Invacare SB910 Hospital Bed
benefit|SB910-BE15.jpg|The Invacare SB910 Hospital Bed
cover|SB910 CV05.jpg|The Invacare SB910 Hospital Bed
cover|SB910 CV05.jpg|The Invacare SB910 Hospital Bed
feature|SB910 OF16.jpg|The Invacare SB910 Hospital Bed
feature|SB910 OF24.jpg|The Invacare SB910 Hospital Bed
benefit|SB910-BE14.jpg|The Invacare SB910 Hospital Bed
benefit|SB910-BE15.jpg|The Invacare SB910 Hospital Bed
cover|SB910 CV05.jpg|The Invacare SB910 Hospital Bed

The bed is built in collaboration with health authorities to ensure it meets the requirements and demands of the modern hospital environment. The side rails fit a variety of mattress heights and can be raised and lowered quickly and easily for added safety. The integrated mattress support lets the bed to be adjusted for taller patients.

The Invacare SB 910 bed allows patients to adjust their sitting and lying position. This helps them achieve an optimal comfort along with the best reclining position without any assistance; thanks to the 5-section mattress support with reclining backrest and green button function. This feature also helps minimise shear and friction forces, thereby preventing skin damage.

  • Flexibility and safety: The bed comes as standard with an Attendant Control Unit, which enables care and nursing staff to lock one or more of the beds motor functions.
  • Hand control: It comes with a green button function that raises or lowers the mattress support to provide an optimum sitting position.
  • Attendant Control Unit: This allows the carer to lock each of the bed's functions as required.
  • Fender beads: This ensures safety – the fender beads on the side of the bed and fender rolls on the corners of the bed for protection.
  • Integrated mattress support extension: The bed can be extended by up to 20 cm.
  • Neck support: This ensures enhanced comfort and reduced manual handling for care and nursing staff.
Side rail
Side rail
Accommodates mattresses from 12-18 cm, can be raised and lowered quickly and easy for safety.
Side rail height extender
Side rail height extender
Foldable side rail height extender for use with mattresses from 19 - 30 cm in height.
Integrated mattress support extension
Integrated mattress support extension
Invacare SB 910 can be extended by up to 20 cm.
Bed hoist - Lifting Pole
Bed hoist - Lifting Pole
The height and depth of the grab handle on the hoist (lifting pole) can be adjusted.
Bed end
Bed end
The beds ends can be easily and quickly removed to aid care, especially during cardiac arrest.
By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Width

Width

850/990 mm

Height

Height

Total height: 1590 - 2040 mm

Length

Length

Outside: 2000/2160 mm Inside: 2050/2210 mm

Height adjustment

Height adjustment

380 - 830 mm

Mattress support dimensions

Mattress support dimensions

835 - 280 - 335 - 610 mm

Ground clearance

Ground clearance

170 mm

Backrest angle

Backrest angle

0 - 74°

Thigh angle

Thigh angle

0 - 33°

Legrest lift

Legrest lift

0 - 22°

Min. angle below horizontal

Min. angle below horizontal

28°

Anti-Trendelenburg / Trendelenburg

Anti-Trendelenburg / Trendelenburg

Trendelenburg: 14° AntiTrendelenburg: 8°

Max. User weight

Max. User weight

SWL 300 kg 200 kg

Total weight

Total weight

800 mm: 141.5 kg 850 mm: 144 kg

Washable in washing machine

Washable in washing machine

Yes

Frame colour and wood work

Frame colour and wood work

White, Blue

Comment

Hospital use
