inspirational|XLT Max BE01.jpg|Manual wheelchair XLT Max blue frame man working on a car
Discontinued product Discontinued product

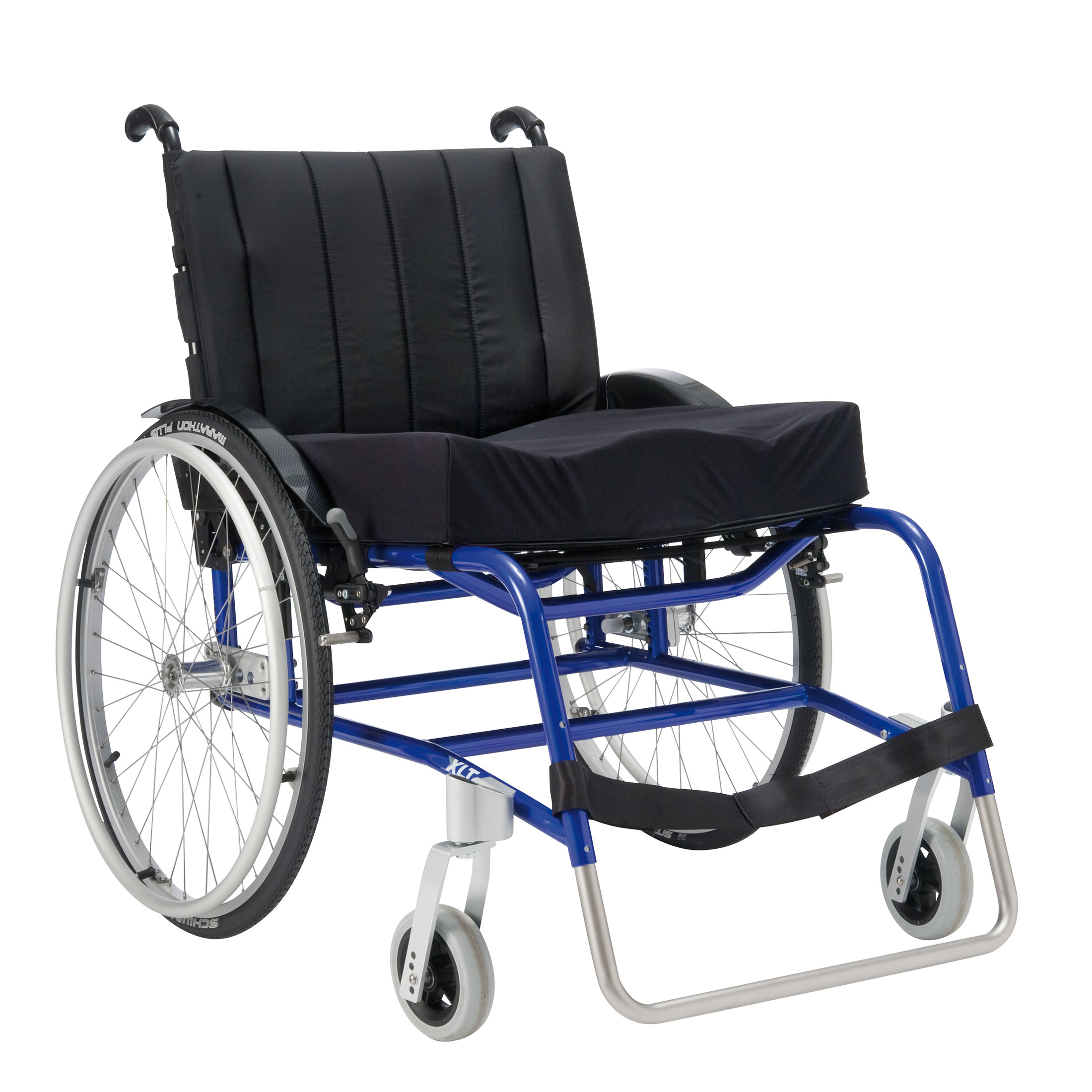

benefit|XLT Max BE04.jpg|Manual wheelchair XLT Max blue frame
cover|XLT Max OF02.jpg|Manual wheelchair XLT Max blue frame
XLT Max1
benefit|XLT Max BE04.jpg|Manual wheelchair XLT Max blue frame
cover|XLT Max OF02.jpg|Manual wheelchair XLT Max blue frame
XLT Max1
benefit|XLT Max BE04.jpg|Manual wheelchair XLT Max blue frame
cover|XLT Max OF02.jpg|Manual wheelchair XLT Max blue frame
XLT Max1
Invacare Flo-tech Contour
Invacare Flo-tech Contour
Ideal bariatric cushion solution. Improved posture and increased support surface area significantly contributes to preventing pressure ulcers
Footplate converter
Footplate converter
Divided into three parts, the footplate comes with a removable mid section, to facilitate transfers
Anti-tipper device
Anti-tipper device
The anti-tipper device is height adjustable and can also act as a step tube

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

505/ 555 /605 mm

Seat depth

Seat depth

500/ 550/ 600 mm

Seat angle

Seat angle

+- 10°

Seat height

Seat height

440 - 520 mm

Backrest height

Backrest height

400 - 490 mm

Front frame angle

Front frame angle

0 - 14°

Driving unit width

Driving unit width

SW + 210 mm

Total height

Total height

790 - 1100 mm

Max. User weight

Max. User weight

180 kg

Total weight

Total weight

15,5 kg

The heaviest part

The heaviest part

11.1 kg

Frame colour

Frame colour

Blue, Red, Black, Grey, Blasted Titanium (available as special orders), Orange (available as special orders)

Service Manual (1)
Test & Certificates (1)
