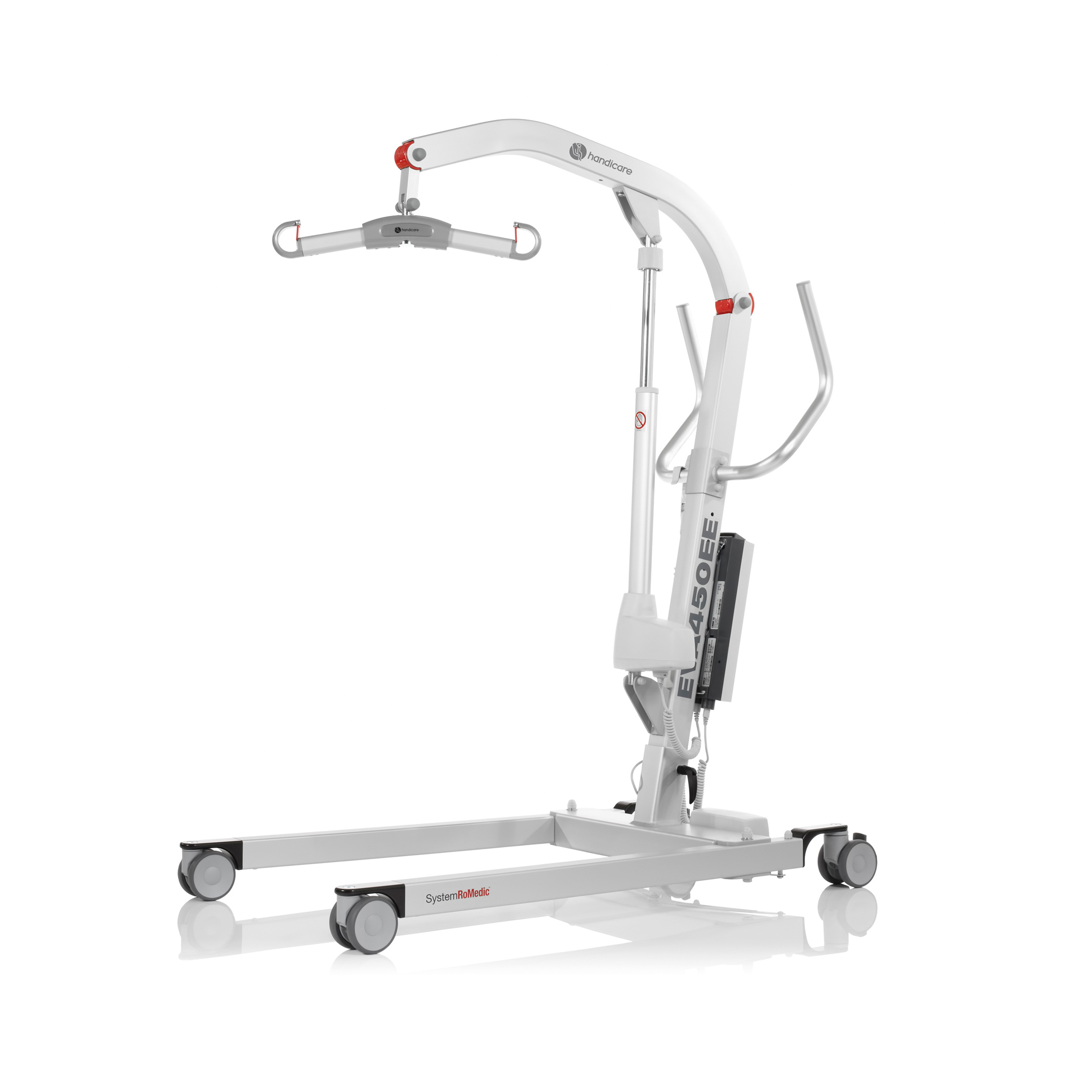

Experience safe and versatile patient handling with the Eva450EE. This mobile lift is designed to support a wide range of lifting situations with ease and confidence.

Suitable for transfers to and from the floor, bed or chair, as well as horizontal lifting and gait training, Eva450EE adapts to everyday care needs.

With a strong yet lightweight aluminium frame, the lift offers excellent manoeuvrability while supporting users up to 205 kg.

The adjustable mast and ergonomic handles ensure comfortable working positions, while the electrical base widening enables smooth positioning even in confined spaces.

Equipped with reliable safety features, including a stable sling bar with safety latches and emergency lowering functions, Eva450EE delivers dependable performance in both clinical and home care environments.

Key features:

  • Mobile patient lift for versatile transfer situations.
  • Safe working load up to 205 kg.
  • Lightweight aluminium frame for easy manoeuvrability.
  • Electrical base widening for flexible positioning.
  • Emergency stop and manual/electrical lowering functions.
By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Safe working load

Safe working load

250 kg

Base length

Base length

1310 mm

Base width, outer dimensions

Base width, outer dimensions

685 - 980 mm

Base width, inner dimensions (legs closed)

Base width, inner dimensions (legs closed)

585 - 880 mm

Min - Max height at sling hook-up

Min - Max height at sling hook-up

500 - 1790 mm

Turning diameter

Turning diameter

1340 mm

Total weight

Total weight

34 kg

Max. height

Max. height

2005 mm

Ground clearance

Ground clearance

60 mm

Wheel diameter / Castors diameter

Wheel diameter / Castors diameter

100 mm

Height of legs

Height of legs

115 mm

Height when folded

Height when folded

1330 mm

Lifting speed (without load)

Lifting speed (without load)

35 mm/s

Service Manual (1)
Test & Certificates (1)
Test & Certificates (1 archive)
