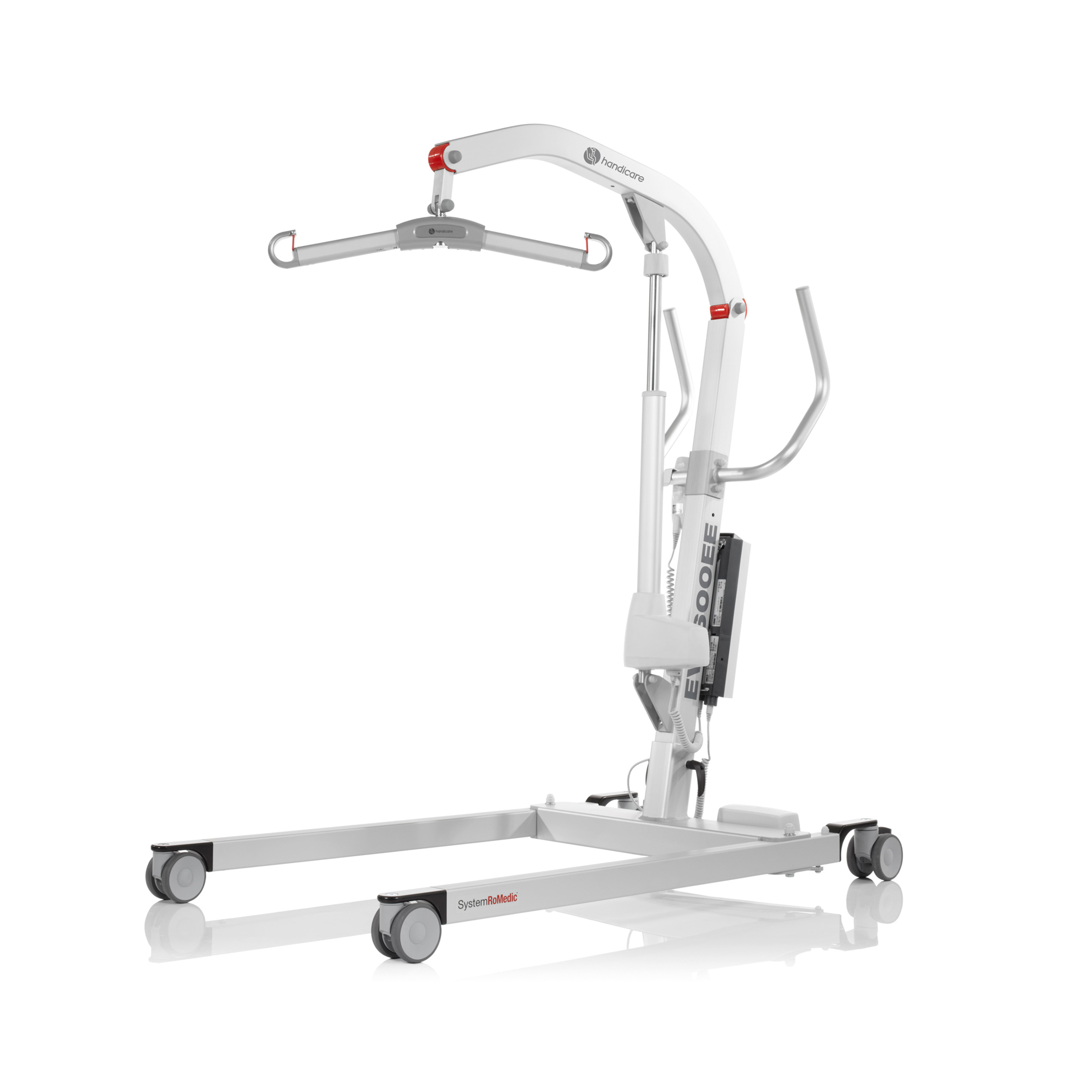

Provide safe and powerful lifting support with the Eva600EE. This mobile patient lift is designed for demanding care environments and heavier users.

Ideal for transfers to and from the floor, bed or chair, as well as horizontal lifting and gait training, Eva600EE offers flexibility across a wide range of applications.

With a robust aluminium frame and a safe working load of up to 270 kg, the lift delivers exceptional strength without compromising manoeuvrability.

The wider sling bar provides a more open and comfortable lifting position, while the electrical base widening ensures easy adjustment during transfers.

Equipped with advanced safety features, including emergency lowering functions and secure sling bar latches, Eva600EE guarantees reliable and controlled patient handling.

Key features:

  • Mobile lift designed for heavier users, up to 270 kg.
  • Wide sling bar for improved positioning and comfort.
  • Electrical base widening for easy adjustment.
  • Durable aluminium construction with smooth manoeuvrability.
  • Emergency stop and manual/electrical lowering for safety.
By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Safe working load

Safe working load

270 kg

Base length

Base length

1410 mm

Base width, outer dimensions

Base width, outer dimensions

750 - 1150 mm

Base width, inner dimensions (legs closed)

Base width, inner dimensions (legs closed)

650 - 1050 mm

Min - Max height at sling hook-up

Min - Max height at sling hook-up

550 - 1790 mm

Turning diameter

Turning diameter

1340 mm

Total weight

Total weight

39 kg

Max. height

Max. height

2005 mm

Ground clearance

Ground clearance

60 mm

Wheel diameter / Castors diameter

Wheel diameter / Castors diameter

100 mm

Height of legs

Height of legs

115 mm

Height when folded

Height when folded

1330 mm

Lifting speed (without load)

Lifting speed (without load)

35 mm/s
