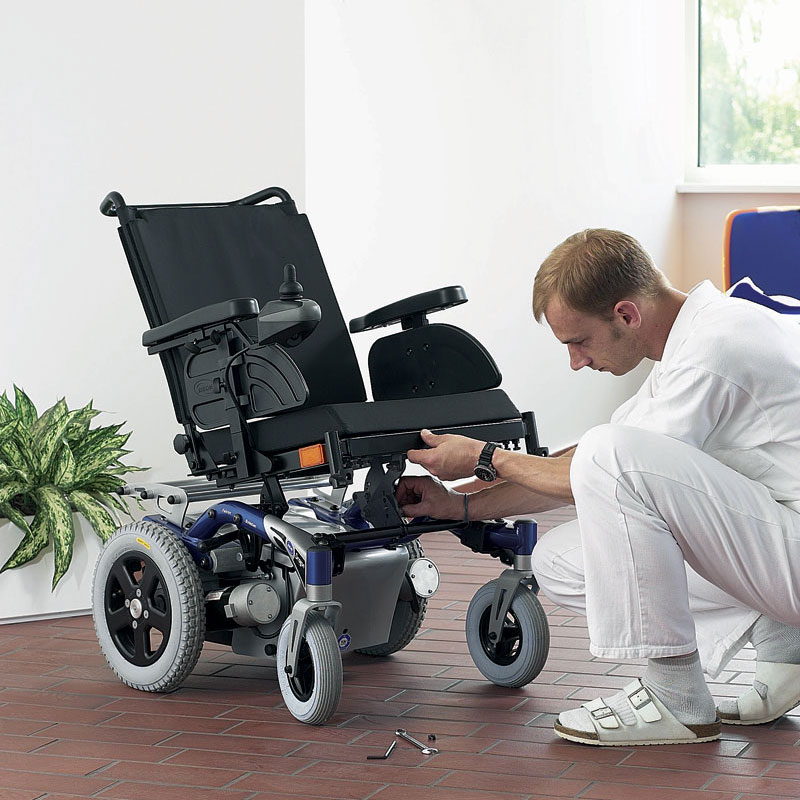

Invacare Dragon power wheelchair

Discontinued product Discontinued product

Discover our large offer of power wheelchairs, click here

By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

440 - 490 mm

Seat depth

Seat depth

410, 460, 510 mm

Seat height

Seat height

425 - 500 mm

Backrest height

Backrest height

480 / 540 mm

Armrest height

Armrest height

290 - 360 mm

Length of footrests

Length of footrests

300 - 430 mm

Seat angle

Seat angle

up to 22°

Backrest angle

Backrest angle

–10° - 30°

Total height

Total height

980 / 1040 mm

Total length without footrests

Total length without footrests

850 mm

Driving Unit Width

Driving Unit Width

610 mm

Total length

Total length

1030 mm

Max. User weight

Max. User weight

125 kg

Battery capacity

Battery capacity

2 x 12 V 60 Ah

Turning diameter

Turning diameter

1660 mm

Max. climbable obstacle height

Max. climbable obstacle height

60 mm

Max. safe slope

Max. safe slope

15% (8.5°)

Motor capacity

Motor capacity

2 x 180 W

Speed

Speed

6 km/h

Driving range

Driving range

up to 30 km

Total weight

Total weight

100 kg

Test & Certificates (1)
