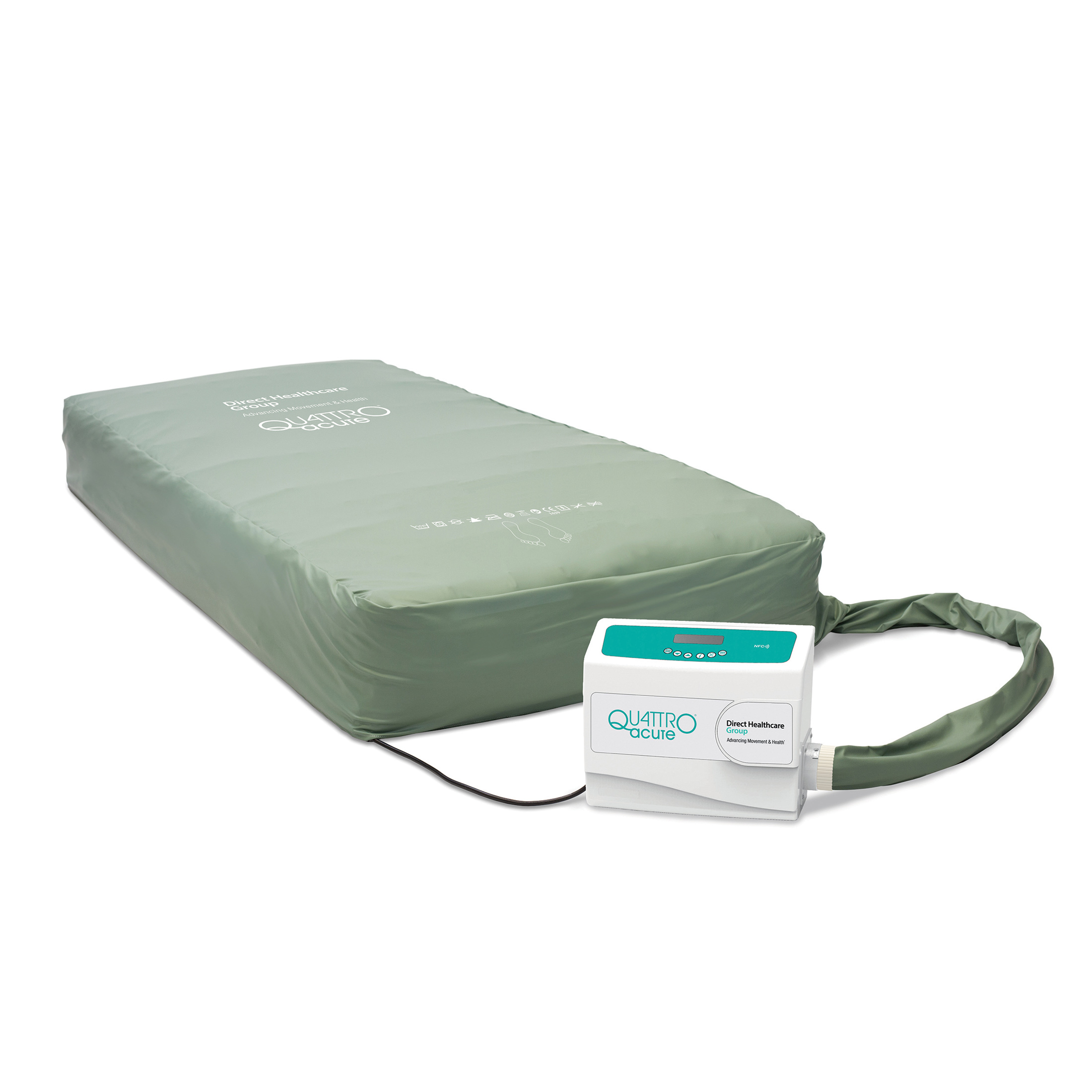

Quattro Acute
alternating pressure mattress

Deliver advanced pressure injury prevention and treatment with the Quattro® Acute. Designed for highly dependent patients, this active pressure redistribution mattress system provides enhanced therapy for individuals at high to very high risk of pressure injury development.

Built around a proven active 1-in-4 cell cycle, the system delivers effective tissue offloading throughout each therapy cycle, helping to support pressure redistribution and promote tissue reperfusion.

Featuring exclusive Deep Cell Therapy™, Quattro® Acute operates at lower internal cell pressures, helping to minimise pressure on the skin and underlying tissues while enhancing patient comfort.

The combination of TISSUEgard™, microclimate management and a multi-stretch, moisture-vapour permeable cover helps reduce shear and friction forces while maintaining a healthy skin environment.

Designed for demanding care environments, Quattro® Acute combines intuitive operation, a modern LCD control unit and reliable clinical performance, making it a valuable solution for acute, community and specialist care settings.

Key features:

  • Active pressure redistribution mattress for patients at high to very high risk of pressure injury development.
  • Deep Cell Therapy™ technology for enhanced pressure relief and comfort.
  • Proven 1-in-4 active cell cycle promotes tissue offloading and reperfusion.
  • TISSUEgard™ and microclimate management help reduce shear and friction.
  • Easy-to-use control unit with LCD display and improved serviceability.
By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Width

Width

780 mm
830 mm
900 mm

Height

Height

240 mm

Length

Length

1980 mm

Max. User weight

Max. User weight

200 kg

Total weight

Total weight

9,9 kg

Max. cleaning temperature

Max. cleaning temperature

73 °C
