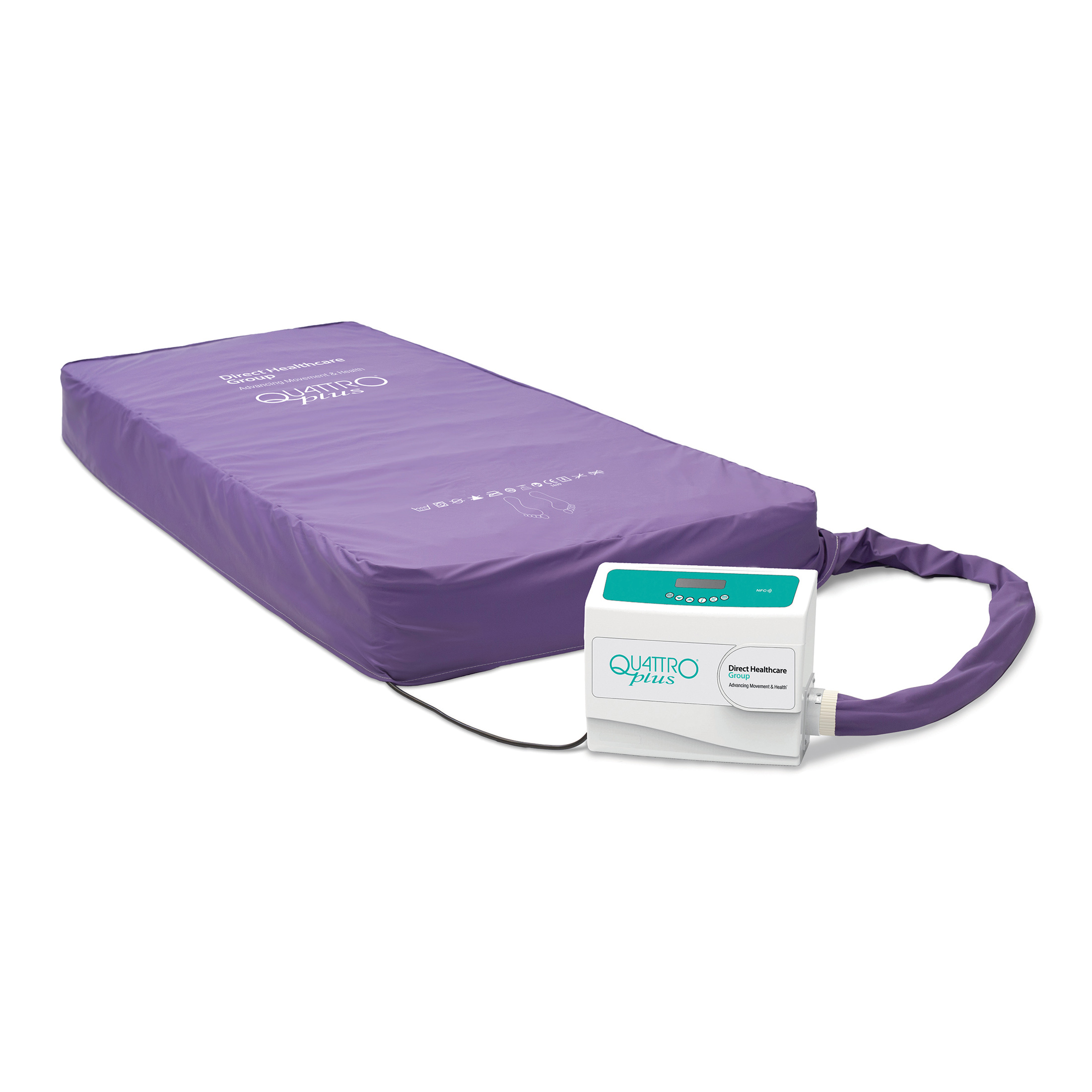

Quattro Plus
alternating pressure mattress

Provide effective pressure injury prevention and management with the Quattro Plus. Designed for patients at high to very high risk of pressure injury development, this active pressure redistribution mattress system delivers proven therapy across a wide range of care settings.

Utilising a reliable 1-in-4 active cell cycle, the system delivers continuous pressure redistribution while maintaining support to 75% of the body throughout each therapy cycle, helping to promote tissue reperfusion and patient comfort.

Quattro Plus inspirational picture
Quattro Plus inspirational picture
Quattro Plus inspirational picture

Ortho-Differential Support technology combines firmer outer edges with a softer central zone, enhancing stability during transfers while providing optimised support for a broad range of patient profiles.

TISSUEgard™ technology promotes patient immersion and envelopment within the support surface, while microclimate management and a multi-stretch cover help reduce shear, friction and moisture build-up at the skin interface.

Designed for ease of use and long-term reliability, Quattro® Plus features a redesigned control unit with LCD display, simplified cleaning and servicing, and is suitable for use across acute, community and palliative care environments.

Key features:

  • Active pressure redistribution mattress for patients at high to very high risk of pressure injury development.
  • Proven 1-in-4 active cell cycle supports effective tissue offloading.
  • Ortho-Differential Support enhances stability and patient comfort.
  • TISSUEgard™ and microclimate management help reduce shear and friction.
  • Easy-to-use control unit with LCD display and simplified maintenance.
By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Width

Width

Standard: 780, 83, 880 mm
King size: 1050 mm

Height

Height

180 mm

Length

Length

Standard: 1950 mm
Long: 2080 mm

Max. User weight

Max. User weight

200 kg

Total weight

Total weight

9,9 kg

Max. cleaning temperature

Max. cleaning temperature

73 °C
