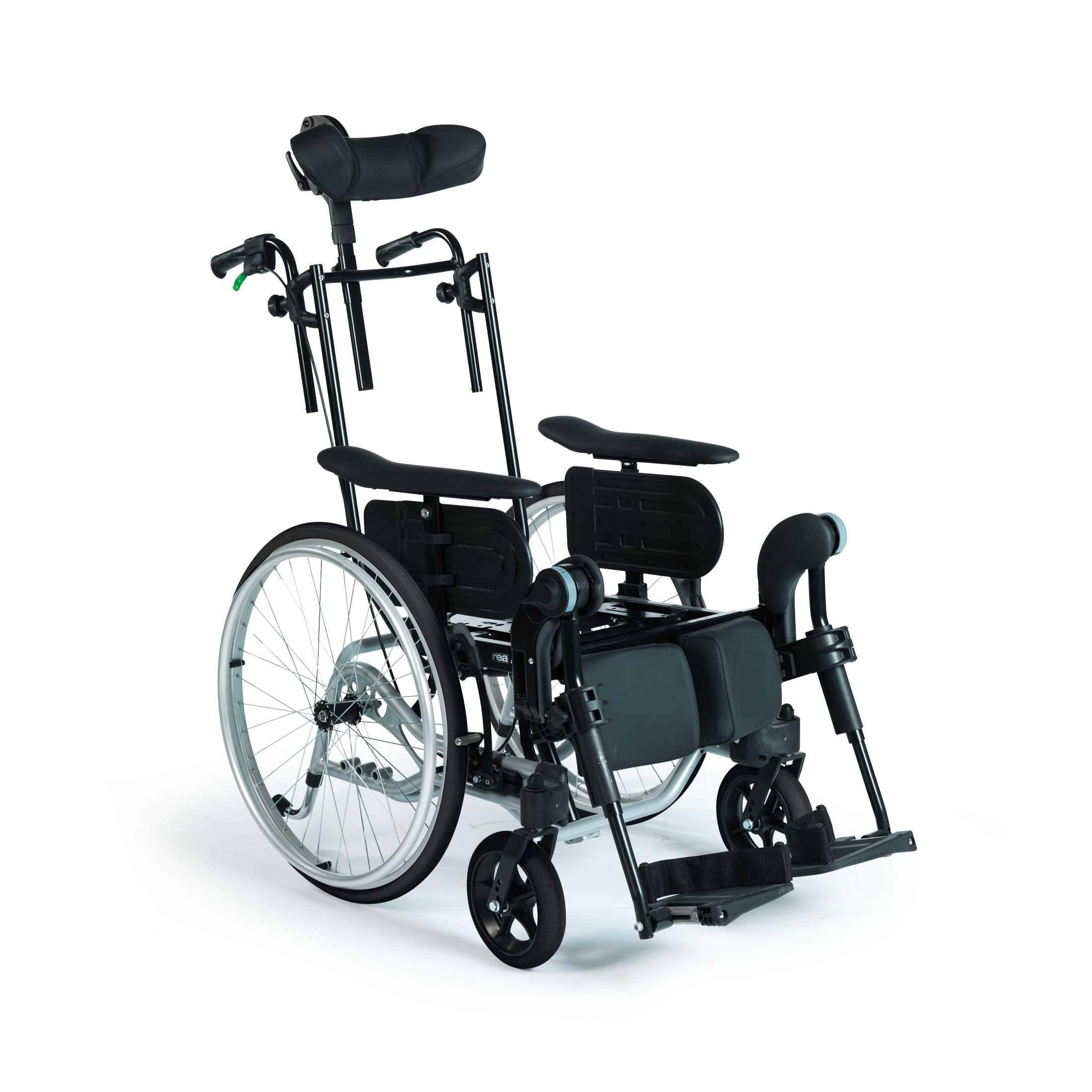

Rea Azalea Base is designed for people seeking a custom-made seat combined with a first-class wheelchair base. Developed to accommodate an alternative seating system with extra space in the rear of the seat frame and seat adjustability. The seat width can be adjusted from the arm and leg rests, and the depth changed via the telescopic seat frame. The high straight backrest tubes offer easy fixation ensuring that the Rea Azalea Base easily adapts to different-shaped seat moulds.

The Rea Azalea Base is wider in the rear section of the seat, offering the possibility to use larger seating systems on smaller frames. The backrest is angle adjustable including an increased recline which can be angled via a ‘rigging screw’ or an attendant operated gas piston. Another key feature of the Rea Azalea Base is the ‘Tilt in Space’ function - a weight shifting mechanism that ensures reliable stability. The carer or individual or can easily change their seating position with the power tilt and recline remote control option. Same chassis for 16, 20, 22 and 24" rear wheels, it reduces the number of parts required and accommodates different needs. As there are many balance options, it is also easier to push.

Rea Azalea base
Rea Azalea base
Rea Azalea base
Rea Azalea base
Rea Azalea base
Rea Azalea base close up
Rea Azalea base close up
Rea Azalea base
Rea Azalea base
Rea Azalea base
Rea Azalea base
Rea Azalea base
Rea Azalea base close up
Rea Azalea base close up
Rea Azalea base
Rea Azalea base
Rea Azalea base
Rea Azalea base
Rea Azalea base
Rea Azalea base close up
Rea Azalea base close up


Key Features

  • Wider in the rear section: the Rea Azalea Base passive wheelchair by Invacare offers the possibility of using larger seating systems on smaller frames.
  • Lighter to push: offers many balance options.
  • “Tilt in Space” function: a weight shifting mechanism ensuring reliable stability.
  • Angle adjustable backrest: includes an increased recline which can be angled via a ‘rigging screw’, or an attendant-operated gas piston.
  • Adapts easily to a variety of seat moulds: the seat width can be adjusted from the arm and leg rests.
  • Seat plate with turnable wedge: optional +5º seat angle can be obtained.
  • Optional harness attachment.
  • Multiple attachment holes offered: plus greater “open space” at the back.
  • Available in 5 colours: Pearl Grey, Azurite Blue, Sand, Happy Red and Electric Green.
close up of seat plate with turnable wedge
Seat plate with turnable wedge

An additional +5º seat angle can be obtained, using the optional seat plate with a wedge.

close up of harness attachment
Harness attachment

An attachment for different kinds of harnesses is also available as an option.

close up of fixing attachments
Fixing attachments

The seat offers various attachment holes, plus greater ‘open space’ at the back.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Rea Options Tool
Rea Options Tool
Configure your
Rea wheelchair
View the options and possibilities
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

340/390/440/490 mm (+ 50/100 mm)

Seat depth

Seat depth

380 - 450 mm 430 - 500 mm

Seat angle

Seat angle

-1° to 23° (22 / 24“) (+1° to 25°) (16“)

Seat height

Seat height

400/450 mm

Backrest angle

Backrest angle

0°-30°

Backrest height

Backrest height

600 / 700 mm

Armrest height

Armrest height

240 - 360 mm

Driving unit width

Driving unit width

SW + 220 mm (SW + 230 mm)

Total length inc. footrests

Total length inc. footrests

950 - 1035 mm

Total height

Total height

1300 / 1400 mm

Max. User weight

Max. User weight

135 kg

Total weight

Total weight

20 kg

Transport weight

Transport weight

15 kg

Crash tested

Crash tested

Frame colour

Frame colour

Pearl Grey, Azurite Blue, Sand, Happy Red, Electric Green
