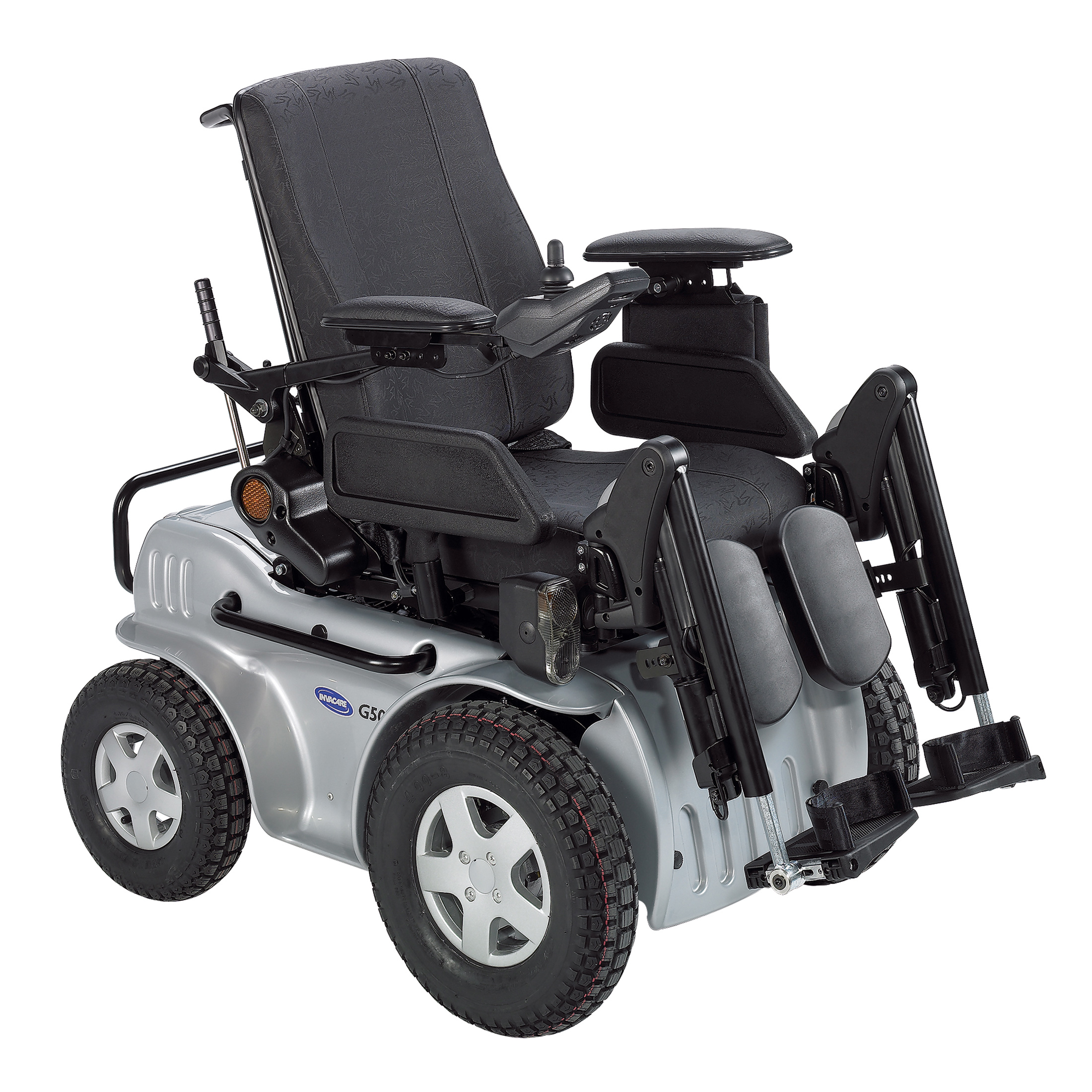

Invacare G50 power wheelchair

inspirational|G50 BE05.jpg|Invacare G50 power wheelchair
cover_main|G50 CV02.jpg|Invacare G50 power wheelchair
Discontinued product Discontinued product

Discover our wide range of power wheelchairs, click here.

cover|G50-MP01.jpg|Invacare G50 power wheelchair
feature|G50-OF01.jpg|Invacare G50 power wheelchair
feature|G50-OF03.jpg|Invacare G50 power wheelchair
feature|G50-OF05.jpg|Invacare G50 power wheelchair
feature|G50-OF11.jpg|Invacare G50 power wheelchair
benefit|G50-BE04.jpg|Invacare G50 power wheelchair
cover|G50-MP01.jpg|Invacare G50 power wheelchair
feature|G50-OF01.jpg|Invacare G50 power wheelchair
feature|G50-OF03.jpg|Invacare G50 power wheelchair
feature|G50-OF05.jpg|Invacare G50 power wheelchair
feature|G50-OF11.jpg|Invacare G50 power wheelchair
benefit|G50-BE04.jpg|Invacare G50 power wheelchair
cover|G50-MP01.jpg|Invacare G50 power wheelchair
feature|G50-OF01.jpg|Invacare G50 power wheelchair
feature|G50-OF03.jpg|Invacare G50 power wheelchair
feature|G50-OF05.jpg|Invacare G50 power wheelchair
feature|G50-OF11.jpg|Invacare G50 power wheelchair
benefit|G50-BE04.jpg|Invacare G50 power wheelchair
Product Comparator
Compare
Cancel Compare
Seat tilt
Seat tilt
The seat angle can either be set in steps (standard) or adjusted electrically.
Flex seat
Flex seat
The Flex seat combines comfort with good posture support.
Adjustable springs
Adjustable springs
Adjustable springs in the rear and front provide excellent comfort and good shock absorption.
Light
Light
Light function according to the European street regulation assures visibility.
Seat
Seat
The entire seat can be lifted for service activities.
Sales Offices contact Show your sales offices contact

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Find your Sales Contact
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

440 - 480 (430) mm

Seat depth

Seat depth

410 / 460 / 510 mm

Seat height

Seat height

510 mm

Backrest height

Backrest height

480 / 540 mm

Armrest height

Armrest height

290 - 360 mm

Length of footrests

Length of footrests

290 - 470 / 380 - 530 mm

Seat angle

Seat angle

1.5° - 15° / 4°

Backrest angle

Backrest angle

–10° - +30°

Total height

Total height

1030 mm

Total length without footrests

Total length without footrests

1030 mm

Driving Unit Width

Driving Unit Width

700 mm

Total length

Total length

1240 mm

Max. User weight

Max. User weight

150 kg

Battery capacity

Battery capacity

60 Ah / 70 Ah / 97 Ah

Turning diameter

Turning diameter

2280 mm

Max. climbable obstacle height

Max. climbable obstacle height

110 mm

Max. safe slope

Max. safe slope

18% / 10.2°

Motor capacity

Motor capacity

500 / 680 W

Speed

Speed

6 / 10 km/h

Driving range

Driving range

up to 60 km

Total weight

Total weight

135 kg

Frame colour

Frame colour

Silver, Perl-Night Blue

Frame colour

Comment

1. Without seat cushion 2. Measured from seat upholstery, incl. headrest 3. Electrical seat tilt (option) 4. Manual seat tilt adjustable in 5 positions: 1° - 12° 5. Overall width may depend on adjustment of the arm rests 6. Min. weight varies with configuration 7. Capacity in C20 8. According to ISO 7176-4:2008, with 6 km/h driving unit and 70 Ah batteries

User Manual (8)
User Manual (8 archives)
Manual de usuario G50 (7.24 MB)
Manual Utilizador (963.97 KB)
Invacare G50 Gebruiksaanwijzing (7.38 MB)
Gebrauchsanweisung Invacare G50 (7.04 MB)
Invacare G50 gebruikershandleiding (7.38 MB)
Manuel d'utilisation Invacare G50 (7.72 MB)
User Manual G50 sv (7.2 MB)
User Manual G50 fi (7.2 MB)
Service Manual (7)
Service Manual (7 archives)
MANUALE D'USO - G50 (7.4 MB)
Invacare® G50_Service Manual_BE-NL (2.91 MB)
Invacare® G50_Service Manual_BE-NL (2.94 MB)
Invacare® G50_Service Manual_BE-NL (2.89 MB)
Servicemanual G50 (3.12 MB)
Invacare G50 Servicehandleiding (2.91 MB)
Manual de servicio (2.91 MB)
Test & Certificates (1)
Test & Certificates (1 archive)
Invacare G50 Declaration of Conformity (244.67 KB)
