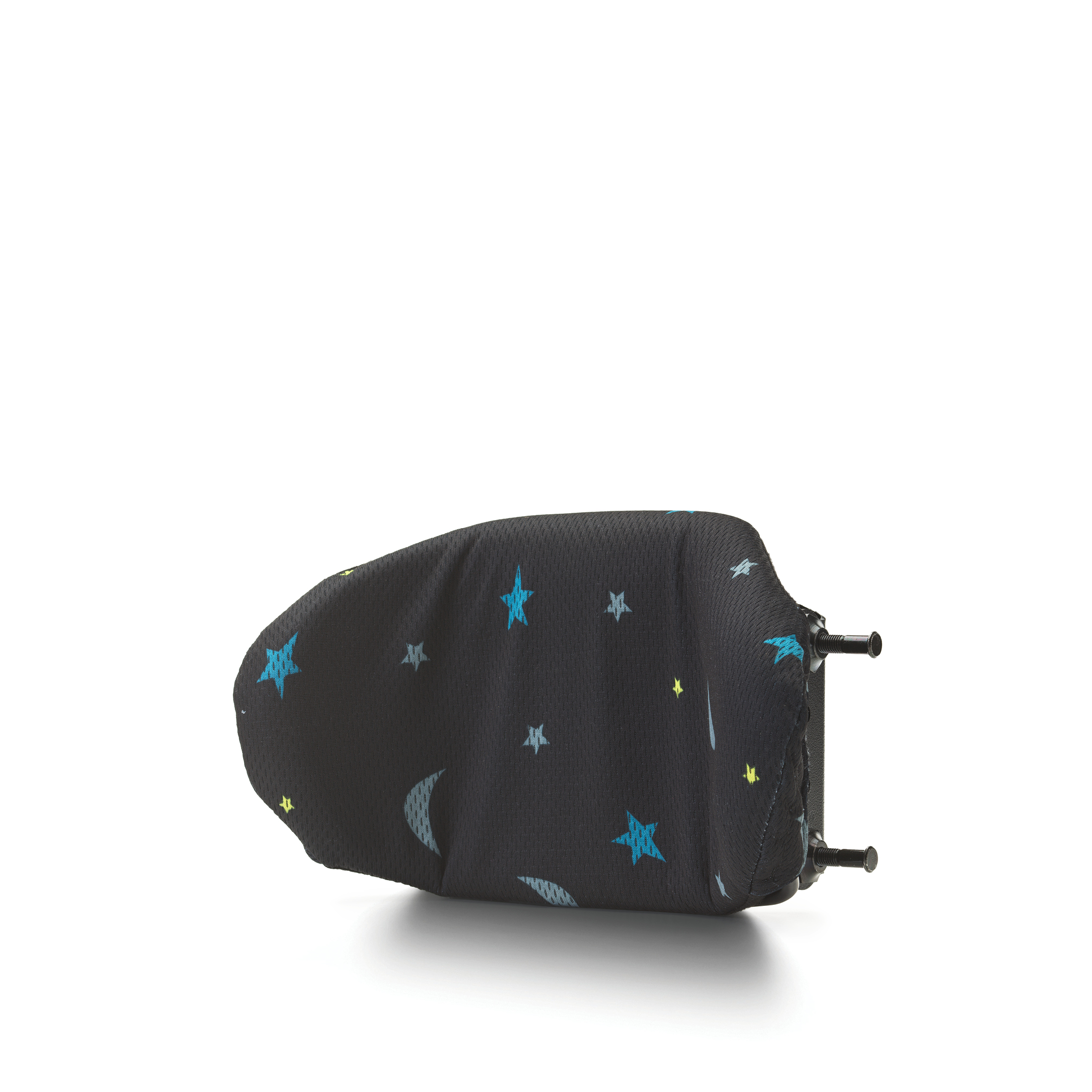

The Invacare Matrx Mini Back is built to transform kids seating. It is contoured to fit children of all shapes and sizes, combining exceptional support in an appealing low profile package. Every element of this back support has been carefully crafted and constructed, keeping paediatric users at the forefront at every stage.

The Mini Back features Mini Set hardware – a specially desifcgned miniature version of the popular Easy Set hardware. This "Mini Set" hardware installs and adjusts in minutes. There is a small attachment point for minimal interference on the back canes, and it can be easily adjusted. The adjustable mounting pins allow it to fit with chairs with the same or 1” wider back. It also has a quick-release mechanism for convenient portability. Matrx Mini Back is also equipped with a lightweight back shell. The durable aluminum shell has been designed for easy attachment of the optional headrest. Below are some key features of the Invacare Matrx Mini Back:

benefit|Image 2.JPG|Invacare Matrx mini back
cover|MATRX MINI BACK CV03.jpg|Invacare Matrx mini back
cover|MATRX MINI BACK CV04.jpg|Invacare Matrx mini back
benefit|MATRX MINI BE03.jpg|Invacare Matrx mini back
benefit|Image 2.JPG|Invacare Matrx mini back
cover|MATRX MINI BACK CV03.jpg|Invacare Matrx mini back
cover|MATRX MINI BACK CV04.jpg|Invacare Matrx mini back
benefit|MATRX MINI BE03.jpg|Invacare Matrx mini back
benefit|Image 2.JPG|Invacare Matrx mini back
cover|MATRX MINI BACK CV03.jpg|Invacare Matrx mini back
cover|MATRX MINI BACK CV04.jpg|Invacare Matrx mini back
benefit|MATRX MINI BE03.jpg|Invacare Matrx mini back
  • Hardware: Matrx Mini Back is made with easy set hardware, which installs and adjusts in minutes. The adjustments can be made with the user seated in the wheelchair. Other hardware styles could be substituted for unique mounting applications, such as Split, Fixed and Space Saver.
  • Backshell: It is designed with a stylish, durable aluminum shell that provides contoured support in the shoulder area, slotted for lateral support hardware attachment.
  • Adjustable Lumbo-Sacral Support: This feature includes a removable positioning pad.
  • Headrest Adapter: The Invacare Matrx Mini Back comes with a headrest adapter that allows for easy, durable, and safe mounting of the headrest hardware. This provides offset for clearance of foam overlap.
  • Durability: The Invacare Matrx Mini Back is built with excellent quality materials to last longer.
  • Cover: Matrx Mini Back comes with an oversized cover, which contains SuperSoft HR foam layered over firm HR foam. This enhances comfort and protection. The attractive Meshtex cover is water-resistant and breathable.
Matrx Mini back shell
Back shell

Lightweight, contoured, and durable backrest.

Kidabra fabric
Outer cover

Water resistant and breathable upholstery with attractive Kid*ab*ra print.

Swing away lateral supports
Mini Swing-away Laterals

Height, width and depth adjustable lateral support for added stability and positioning. Pad size W110 mm x H82 mm.

Matrx Mini Elan headrest
Matrx Mini Elan Headrest

Optional headrest available with highly adjustable hardware and 6 points of adjustment for maximum support.

Matrx Mini set hardware
Mini Set Hardware

Allows 100 mm of depth adjustment to accommodate growth.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Width

Width

260, 280, 310, 330, 360 mm

Height

Height

180, 260, 310, 360 mm

Depth adjustment

Depth adjustment

+/-50 mm

Angle adjustment

Angle adjustment

+/-15º

Total weight

Total weight

starting 400g

Max. User weight

Max. User weight

68kg

Cover options

Cover options

Kid*ab*ra fabric upholstery

User Manual (1)
Service Manual (1)
Service Manual (1 archive)
Test & Certificates (1)
