Soft Tilt 3
medical bed repositioning system

Soft Tilt 3 - Inspirational

Soft Tilt 3 is an automated repositioning system that secures to medical profiling beds. Designed to help provide enhanced patient care as well as maximising comfort for the patient and caregiver.

Built-in functionalities enable effortless repositioning for pressure relief and other manual handling activities. The intuitive hand control makes it easy-to-operate and helps promote single-handed care.

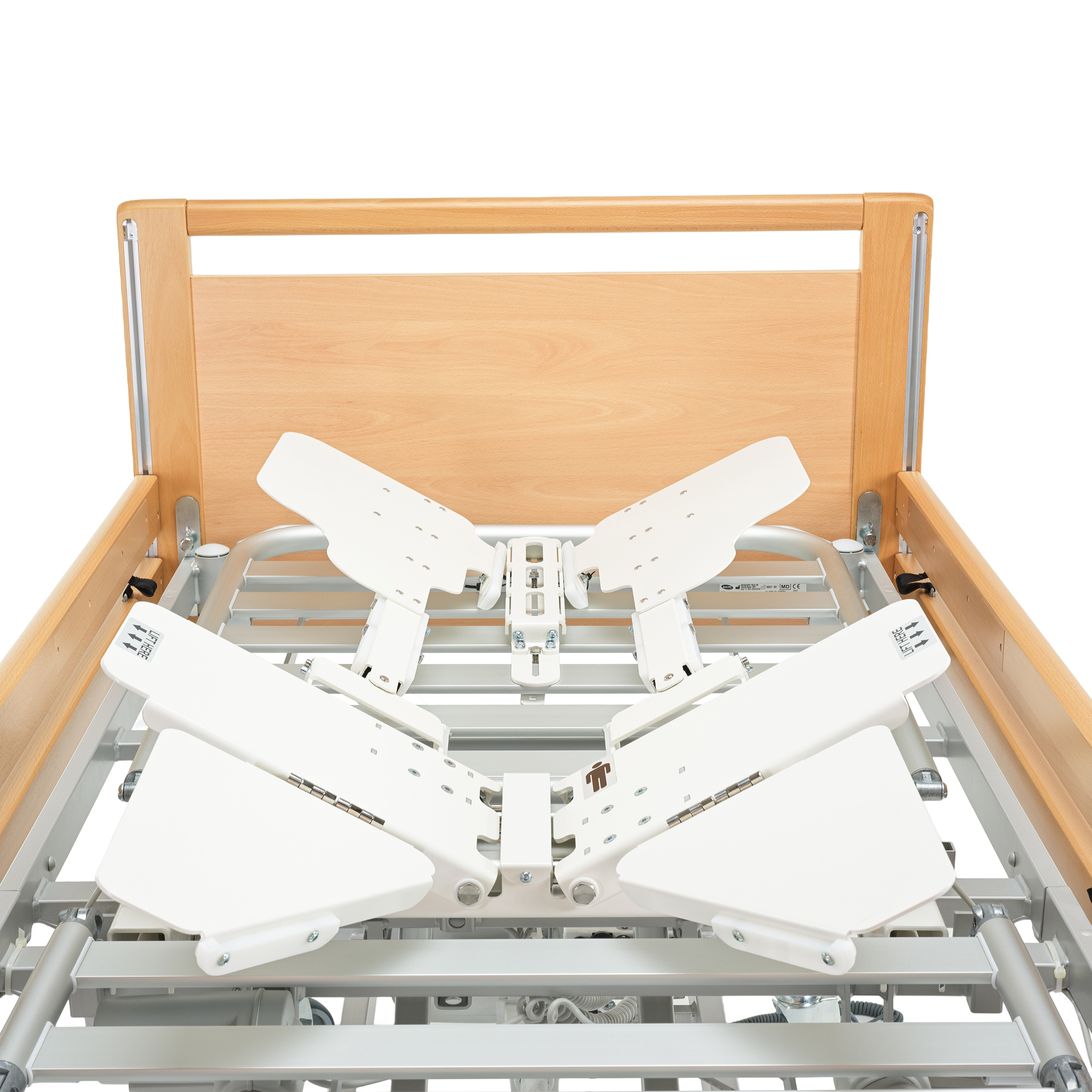

Soft Tilt 3 - articulated position
SOFT TILT 3 - Elevated wings
SOFT TILT 3 - Cover option
SOFT TILT 3 Automatic control box
SOFT TILT 3 Manual hand control
Soft Tilt 3 - articulated position
SOFT TILT 3 - Elevated wings
SOFT TILT 3 - Cover option
SOFT TILT 3 Automatic control box
SOFT TILT 3 Manual hand control
Soft Tilt 3 - articulated position
SOFT TILT 3 - Elevated wings
SOFT TILT 3 - Cover option
SOFT TILT 3 Automatic control box
SOFT TILT 3 Manual hand control

Wings elevate up to 30° when automated and 73° manually, to support moving patients from side to side. Both wings can also be elevated at the same time up to 30°, to envelope the patient for extra comfort.

Soft Tilt 3 is compatible with Invacare beds, NordBed Optimo and Ultra (90 cm wide) and SB 755 (85 / 90 cm wide).

Key features:

  • Pressure relief as the patient is automatically moved from side to side.
  • Promotes single-handed care, supporting manual patient handling activities and helps reduce physical strain on caregivers.
  • Sensory stimulation as the wings elevate to envelop the patient, helping them to feel calm, comfortable and relaxed.
  • Quality rest and sleep with less caregiver interaction and an undisturbed sleep.
  • Easy to install and secure to the mattress platform. Aligns with medical bed profiling mechanisms.
  • Intuitive hand control for manual use.
  • Control box can be programmed to automatically turn patients at certain intervals as needed.
Efficient pressure care
Efficient pressure care

 Automatically moves patient from side to side.

Single-handed care
Single-handed care

 Supports manual patient handling and helps reduce strain on caregivers.

Sensory stimulation
Sensory stimulation

 Creates a calming and comfortable effect as both wings elevate to envelope patient.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Max. User weight

Max. User weight

165 kg

The heaviest part

The heaviest part

12 kg

Max. cleaning temperature

Max. cleaning temperature

80° (cover)

Colour (other)

Colour (other)

White
