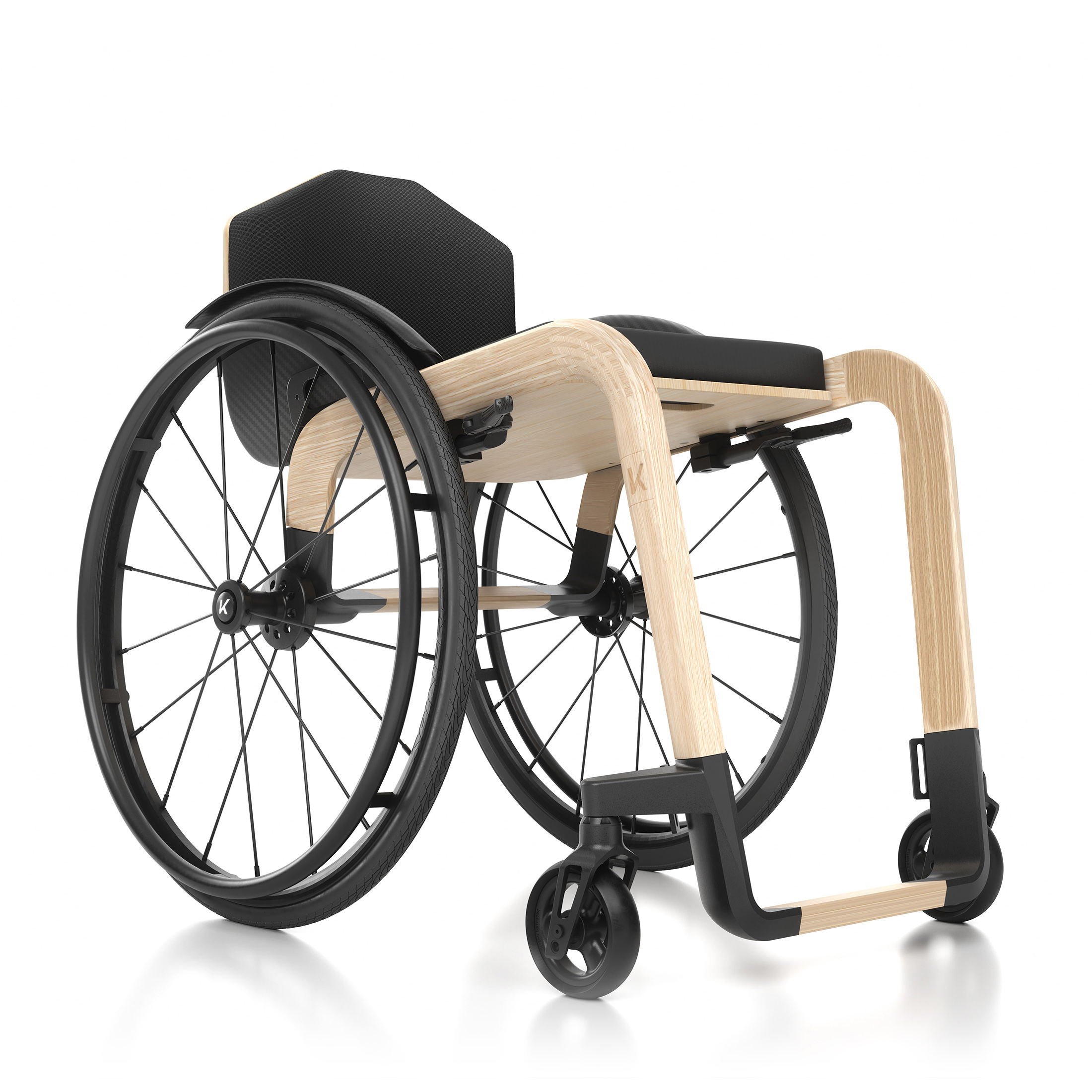

Küschall Element
manual wheelchair

Kuschall Element - Inspirational

The Küschall Element is an exclusive, limited edition, refined active wheelchair. Designed to showcase the passion of Küschall, every curve and contour highlights our commitment to achieving excellence.

Bold and distinctive, each handcrafted chair is a statement of performance, precision and personal expression. Naturally exceptional and built for strength with high-quality European Ash wood – a trusted material for modern performance.

Kuschall Element - side
Kuschall Element - 3/4
Kuschall Element - Front
Kuschall Element - Corima wheel option
Kuschall Element - side
Kuschall Element - 3/4
Kuschall Element - Front
Kuschall Element - Corima wheel option
Kuschall Element - side
Kuschall Element - 3/4
Kuschall Element - Front
Kuschall Element - Corima wheel option

The Küschall Element delivers active mobility with natural elegance. Elevating confidence, celebrating individuality and making every outing an occasion.

Designed for precise geometry, with the optimised wheelbase and seat position to give comfort, effortless manoeuvrability and control.

In collaboration with Breitfuss – innovators in wood-based design, the Küschall Element is born from combined expertise and the vision to create something truly exceptional.

Key features:

  • Easier handling with two integrated handles on the back and seat.

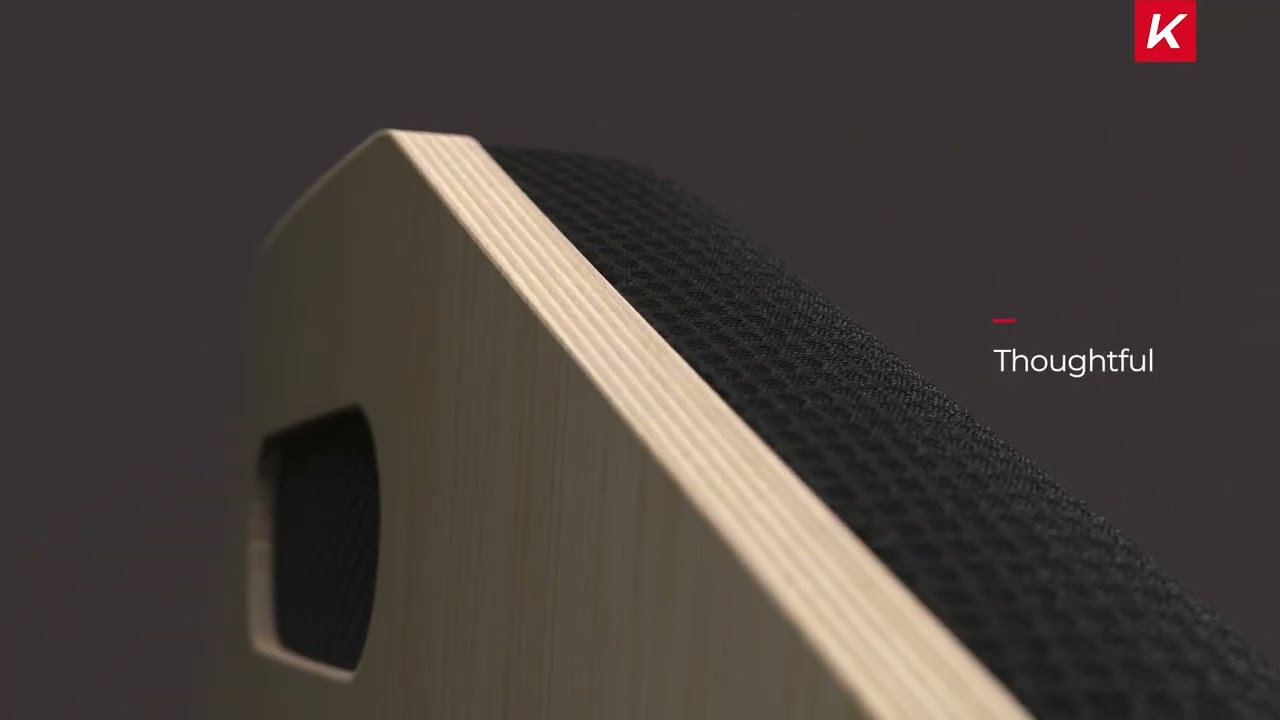

  • Breathable padded back support in mesh fabric.
  • High strength core with the natural Ash frame, built for resilience and tested to endure.
  • Lightweight, easy to operate, active brakes.
  • Durable and lightweight carbon footrest.
  • Choose from ergonomic and lightweight handrims.
  • Spinergy CLX wheel as standard or optional Corima carbon with Schwalbe Marathon Plus tyres.
  • Secured positioning with a range of optional Bodypoint belts to suit individual needs.
Built for Strength
Built for Strength

Precisely engineered from European Ash wood for resilience and durability.

Precise Geometry
Precise Geometry

Optimised wheelbase and seat position for comfort, effortless manoeuvrability and contro.

Distinctly Original
Distinctly Original

Bold and beautiful, delivering active mobility with natural elegance.

By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

340 - 420 mm

Seat depth

Seat depth

410 - 460 mm

Seat angle

Seat angle

8° / 12°

Seat height

Seat height

480 - 500 mm

Knee-to-heel length

Knee-to-heel length

390 - 460 mm

Backrest angle

Backrest angle

85°

Backrest height

Backrest height

300 - 360 mm

Front frame angle

Front frame angle

90°

Total width

Total width

655 mm for SW 420 mm

Total length

Total length

865 mm for SD 460 mm

Centre of gravity

Centre of gravity

95 mm

(seat adjustable by - 15mm / + 15mm)

Max. User weight

Max. User weight

100 kg

Total weight

Total weight

Approx 12.9 kg unloaded

(with standard back & seat cushion)

Transport weight

Transport weight

Approx 8.2 kg

(without rear wheel, back & seat cushion)
