inspirational|AZALEA BE15.jpg|Manual wheelchair Rea Azalea

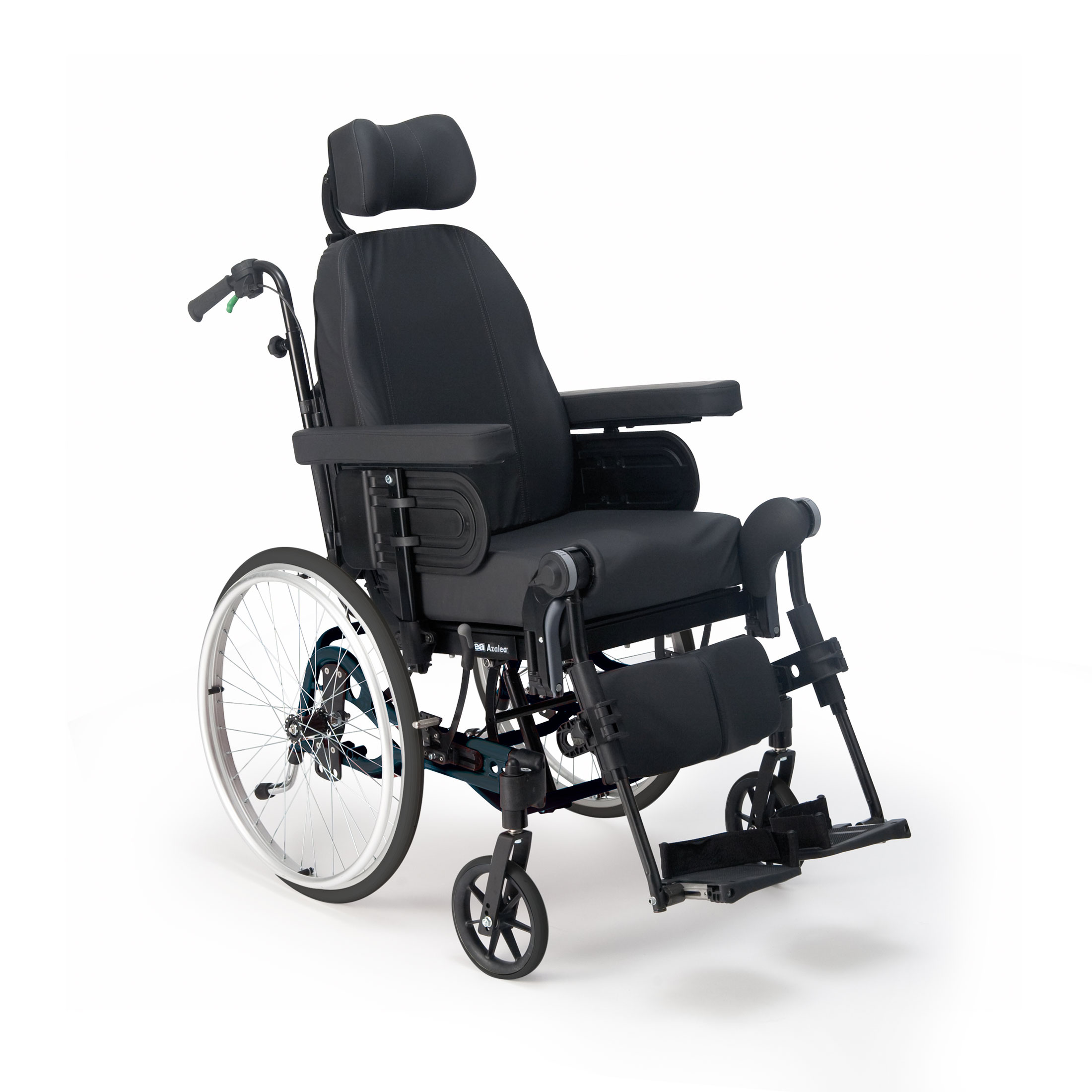

Invacare Rea Azalea wheelchair

This manual wheelchair is currently topping the market charts and a favourite among the users of Invacare products. The Rea Azalea wheelchair has been developed into a range of models that can be suited to meet the requirements of every individual.

cover|AZALEA CV39.jpg|Manual wheelchair Rea Azalea and Rea Azalea Assist
benefit|AZALEA OF52.jpg|Manual wheelchair Rea Azalea backrests
cover|AZALEA OF53.jpg|Manual wheelchair Rea Azalea
cover|AZALMAX CV15.jpg|Manual wheelchair Rea Azalea Max
cover|AZALEA CV39.jpg|Manual wheelchair Rea Azalea and Rea Azalea Assist
benefit|AZALEA OF52.jpg|Manual wheelchair Rea Azalea backrests
cover|AZALEA OF53.jpg|Manual wheelchair Rea Azalea
cover|AZALMAX CV15.jpg|Manual wheelchair Rea Azalea Max
cover|AZALEA CV39.jpg|Manual wheelchair Rea Azalea and Rea Azalea Assist
benefit|AZALEA OF52.jpg|Manual wheelchair Rea Azalea backrests
cover|AZALEA OF53.jpg|Manual wheelchair Rea Azalea
cover|AZALMAX CV15.jpg|Manual wheelchair Rea Azalea Max

The Invacare Rea Azalea wheelchair is designed to offer the perfect fit and comfort and can be easily adjusted if the needs and conditions of the user change. It comes with a fantastic seating system that is designed to be adaptable due to its wide choice of support options, and the adjustment it allows.

It is the go-to choice for controlling postural support and comfort. It also comes with the Invacare Dual Stability System (DSS).

  • Flex 3, backrest plate: Comes with a flex 3, backrest plate that is sturdy and provides support, with both width and height adjustment. The users also get to pick between a wide range of cushions suitable for their comfort.
  • A Flex 3, tension adjustable backrest: The Flex 3, tension adjustable backrest is built to accommodate more complicated spinal shapes. This feature also offers several other adjustments that can suit both the female and male body and several shapes and sizes.
  • Wide range of options: Adding to the multiple adjustments in the chair, the Rea Azalea also offers a large variety of options and accessories that guarantee a solution for a wide range of postural challenges.
  • 24-degree seat tilt and a 30-degree backrest recline: It also features a 24-degree seat tilt and a 30-degree backrest recline to support a range of positioning requirements.
  • Electric version: The user can also opt for an electric version that gives them more control over their position and comfort.

Transit wheels: For attendant propulsion, or self-propel wheels for the moderately active individual.

Excellent seating comfort and many adjustment possibilities
Excellent seating comfort and many adjustment possibilities

The comfortable seating system allows the patient to alter the seat positioning, ensuring maximum comfort at all times, thus combined with excellent driving characteristics make Azalea the ideal ch

Better tilt and recline patient experience
Better tilt and recline patient experience

The Rea Azalea and Rea Azalea Assist have a 25° seat tilt and a 30° backrest recline contributing to improve the quality of life of the patient.

Comfortable and safe resting position.
Comfortable and safe resting position.

Weight shifting maintains the wheelchair stability no matter which seat angle the chair is.

An adaptative and evolutive T/R chair
An adaptative and evolutive T/R chair

The large choice of accessories of Rea Azalea allows the chair to bring appropriate support solutions depending on the patient disease evolution along the patient`s life.

Individualized support of the patient¿s back by the Flex 3 tension adjustable backrest
Individualized support of the patient¿s back by the Flex 3 tension adjustable backrest

The Flex 3 tension adjustable backrest has height and width adjustability.

Find Sales Offices

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Search for your nearest Invacare Retailer by completing the fields below.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads

Technical data
Technical data
Seat width

Seat width

390-440 / 440-490 / 490-540 (390-490 / 440-540 / 490-590 mm)

Seat depth

Seat depth

430 - 500 mm

Seat angle

Seat angle

-1° to 23° (+1° to 25°)

Seat height

Seat height

400 / 450 mm

Backrest angle

Backrest angle

0° - 30°

Backrest height

Backrest height

Backrest plate: 560-790 mm / Tension adjustable backrest: 540-715 mm

Length of footrests

Length of footrests

330 - 627 mm

Armrest height

Armrest height

240 - 360 mm

Driving unit width

Driving unit width

SW + 220 mm (SW + 230 mm)

Total length

Total length

950 - 1035 mm

Total height

Total height

900-1250 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

Max 135 kg

Total weight

Total weight

34 kg (SW 440 mm)

Transport weight

Transport weight

16.5 kg

Crash tested

Crash tested

Frame colour

Frame colour

Pearl Grey, Azurite Blue, Sand, Happy Red, Electric Green

Colour (other)

Colour (other)

Black Dartex TR26, Black plush TR35, Black spacer TR36

Comment

1. Transport weight increases with 4.2 Kg when the E-tilt & Recline option is used

Test & Certificates (1)
