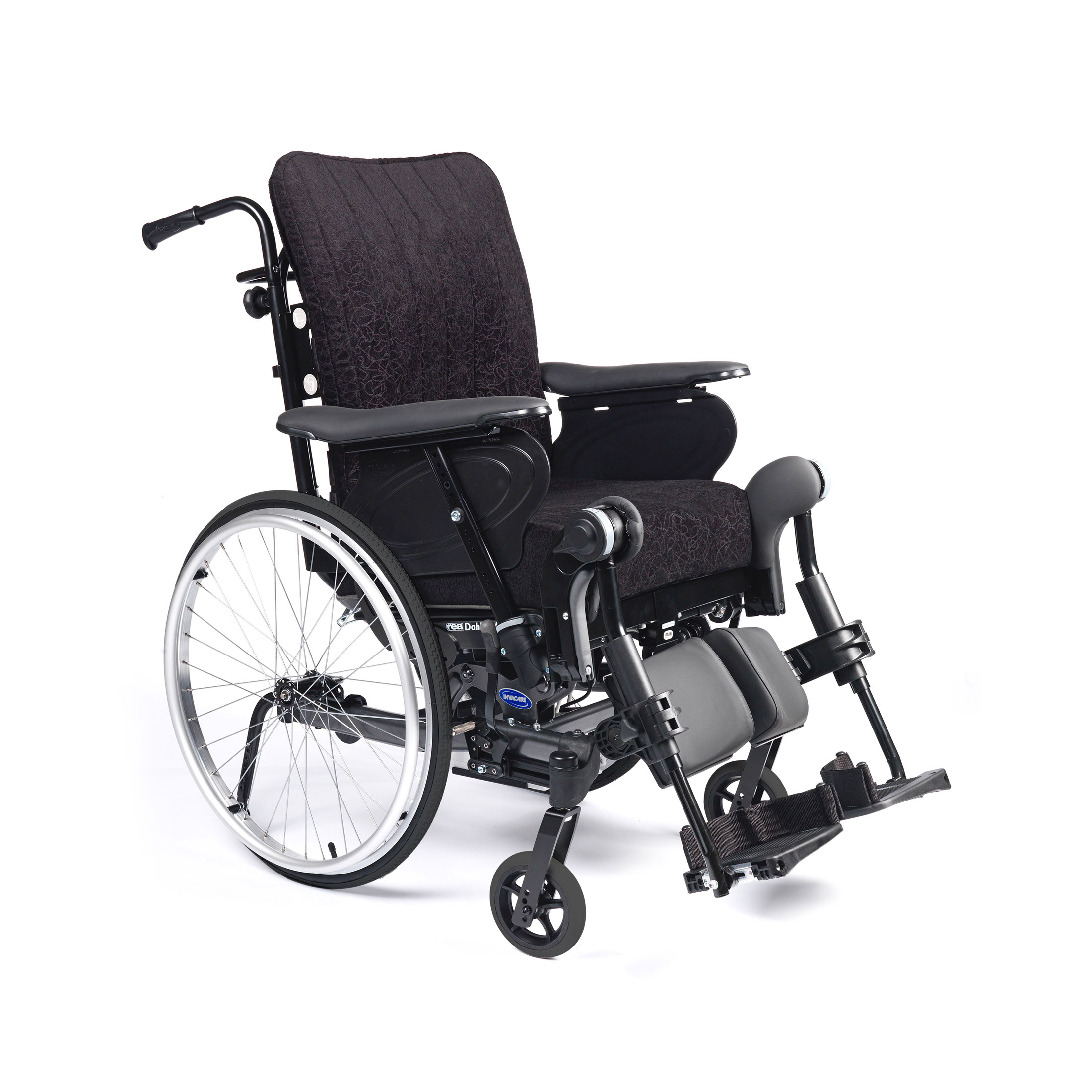

For those looking for a sleek, stylish and comfortable mobility experience, complete with a modern design and narrow footprint, the Invacare Rea Dahlia has it all. Easily adjustable with a full range of tilt options, the Dahlia is one our most versatile wheelchairs yet and is perfect for clients of all abilities, allowing weight shifting with ease as well as supporting a full range of motion options including foot propelling. Rear wheels close to the body make pushing almost effortless, while Dual Stability System (DSS) maintains chair stability in tilt positions of either 30° or 45°.

This exquisite self-tilting mobility seat reduces pressure by reclining to your personal needs. This manual wheelchair utilises Component Cross-Compatibility (CCC), available across the Rea range, and includes Flex3 seating. Matrx backrests provide a stable and firm support to the body and can be added as extra. The same applies to The Matrx® Elite Deep which has built-in trunk support. The Matrx Elite backrest comes with a mild contour which allows for maximum comfort and greater fluidity.

cover|DAHLIA OF32.jpg|Manual wheelchair Rea Dahlia
cover|DAHLIA OF30.jpg|Manual wheelchair Rea Dahlia
cover|DAHLIA OF18.jpg|Manual wheelchair Rea Dahlia Matrx Backrest as an option
cover|DAHLIA OF03.jpg|Manual wheelchair Rea Dahlia 45° posterior pressure relief
cover|DAHLIA OF31.jpg|Manual wheelchair Rea Dahlia stability in tilt position DSS
benefit|DAHLIA BE04.jpg|Manual wheelchair Rea Dahlia
cover|DAHLIA OF32.jpg|Manual wheelchair Rea Dahlia
cover|DAHLIA OF30.jpg|Manual wheelchair Rea Dahlia
cover|DAHLIA OF18.jpg|Manual wheelchair Rea Dahlia Matrx Backrest as an option
cover|DAHLIA OF03.jpg|Manual wheelchair Rea Dahlia 45° posterior pressure relief
cover|DAHLIA OF31.jpg|Manual wheelchair Rea Dahlia stability in tilt position DSS
benefit|DAHLIA BE04.jpg|Manual wheelchair Rea Dahlia
cover|DAHLIA OF32.jpg|Manual wheelchair Rea Dahlia
cover|DAHLIA OF30.jpg|Manual wheelchair Rea Dahlia
cover|DAHLIA OF18.jpg|Manual wheelchair Rea Dahlia Matrx Backrest as an option
cover|DAHLIA OF03.jpg|Manual wheelchair Rea Dahlia 45° posterior pressure relief
cover|DAHLIA OF31.jpg|Manual wheelchair Rea Dahlia stability in tilt position DSS
benefit|DAHLIA BE04.jpg|Manual wheelchair Rea Dahlia

When using the Rea Dahlia at 45°, you have greater tilting possibilities, all of which deliver excellent pressure relieving properties. The 30° tilt option is suitable for our more able clients who will find mobility effortless. For those who prefer to travel with their feet, the seat height can be lowered to 32.5 cm allowing for feet movement.

Key features include:

  • Easy to manoeuvre: rear wheels are close to the seat for advanced movement.
  • Small base: narrow design.
  • Self-tilting: find your perfect posture with minimum effort.
  • Pre-moulded or bespoke tailored seating are possible: have your seat, your way.
  • Flex3 seating: tailor your seat to your body type.

Matrx® backrests: available as an option.

Comfortable propelling and compact frame
Comfortable propelling and compact frame

Rear wheels are closer to the body of the user which increases comfort and enables the Dahlia to be easily propelled.

Excellence in manoeuvrability
Excellence in manoeuvrability

The manual wheelchair Rea Dahlia can be easily propelled with minimum effort as the rear wheels can be moved forward and closer to the arm of the user.

Individualized seat height adjustment
Individualized seat height adjustment

Low seat to floor height gives the user the possibility to foot propel, Dahlia brinks a large range of adjustment from 325 to 505 mm to meet user requirements.

Dahlia in full recline
Light tilt movement

Carer is able to tilt easily with minimum effort. The manual wheelchair Rea Dahlia 45 includes a push up spring making it easier for the chair to come up from a tilted position.

Reference T/R chair for pressure relieves
Reference T/R chair for pressure relieves

The manual wheelchair Rea Dahlia 45 allows a 45° tilt angle delivering excellent pressure relieve properties for those patients who are unable to use the recline to weight shift

Tilt and recline progressional image
Dual Stability System (DSS)

The Dual Stability System (DSS) allows for body length compensation and so minimises shear, friction and compression.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads

Technical data
Technical data
Seat width

Seat width

390-440 / 440-490 / 490-540 16” (390-490/ 440-540/ 490-590 mm)

Seat depth

Seat depth

430 - 500 mm

Seat angle

Seat angle

30°: –1 - 30° / 45°: 0 - 45°

Seat height

Seat height

30°: 330 - 500 mm / 45°: 350 - 500 mm

Backrest angle

Backrest angle

0° - 30°

Backrest height

Backrest height

500 - 800 mm (without seat cushion)

Length of footrests

Length of footrests

330 - 667 mm

Armrest height

Armrest height

250 - 320 mm

Driving unit width

Driving unit width

SW + 160 mm (16”) / SW + 180 mm (24”)

Total length inc. footrests

Total length inc. footrests

900 - 1195 mm

Total height

Total height

825 - 1250 mm

Max. safe slope

Max. safe slope

Turning diameter

Turning diameter

755 mm

Max. User weight

Max. User weight

Max 135 kg

Total weight

Total weight

>35 kg (1)

Transport weight

Transport weight

21 / 25 kg (SW 390 mm)

Crash tested

Crash tested

Frame colour

Frame colour

Black

Colour (other)

Colour (other)

Silver, Blue, Champagne, Red, Petrolium Green

Colour (other)

Comment

Crash tested to ISO 7176-19


(1) Overall weight in seat width 39 cm and with lightest configuration. The E-tilt and Recline option adds 4,2 kg to the transport weight, 2. Transport weight increases with 4.2 kg if the E-Tilt & Recline option is used.
