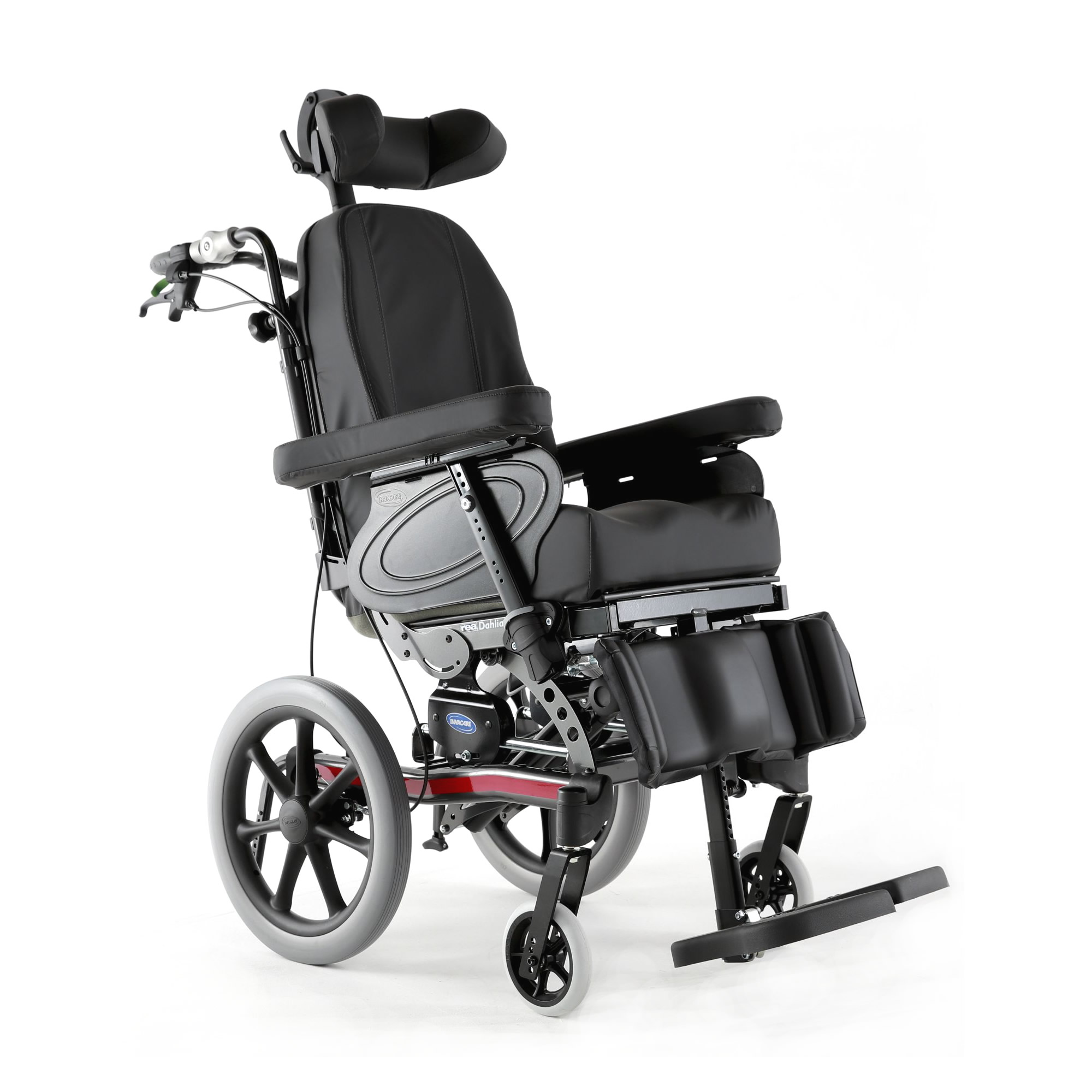

Rea Dahlia 45

Invacare Rea Dahlia has it all - a versatile compact chair for people with changing needs and a slim, compact wheelbase wrapped up in a modern design. It incorporates an adjustable centre of gravity option and a light and easy tilt and recline function, requiring little muscle force. The Dahlia 45 by Invacare is suitable for people who need total pressure relief and it can be accomplished through its tilt function alone. This unique 45° tilt mechanism is light to adjust, thanks to its counter force design. The Dahlia 45 is also easy to operate, manoeuvre and turn, as the overall width is as small. This makes it easy to get through narrow spaces, such as doorways.

The Very safe DSS system maintains chair stability in every tilt position, which also helps to avoid friction and shear when reclining. Component Cross-Compatibility (CCC) across the Rea product range includes Flex3 seating and Matrx backrests including the Matrx® Elite E2 Deep which has built-in trunk support, providing a stable and firm support to the body and can be added as extra. For those seeking mobility with comfort and pressure relief, this versatile chair is perfect for both passive and more active applications.

Rea Dahlia
Rea Dahlia
Rea Dahlia
Rea Dahlia 45
Rea Dahlia 45
Rea Dahlia 45
Rea Dahlia 45
Rea Dahlia
Rea Dahlia
Rea Dahlia
Rea Dahlia 45
Rea Dahlia 45
Rea Dahlia 45
Rea Dahlia 45
Rea Dahlia
Rea Dahlia
Rea Dahlia
Rea Dahlia 45
Rea Dahlia 45
Rea Dahlia 45
Rea Dahlia 45

Key Features:

  • Ideal for foot propelling: the 30° tilt option offered by the Rea Dahlia passive wheelchair is suitable for more able clients who can easily propel themselves.
  • Available in 2 tilt angles: 30º or 45º, which improves the positioning capabilities as the tilt and recline options reduce pressure.
  • Easy manoeuvrability: the rear wheels are close to the body for light pushing.
  • Pre-molded seats, or individually tailored seating.
  • Optional Matrx backrest: provides a stable, firm support to the body.
  • Dual Stability System (DSS): maintains chair stability in every tilt position.
  • Easy to turn: the rear wheels balance the centre of gravity.
    Unique construction of tilt mechanism: light to adjust, requires little muscle force.
  • High pivot point on backrest: minimum shear involved during recline.
  • Reflective strap comes in 5 available colours: Silver, Blue, Champagne, Red and Petroleum Green.
  • Upholstery comes in 3 available colours: Black Dartex, Black Plush and Black Spacer.
Excellence in manoeuvrability
Excellence in manoeuvrability

The manual wheelchair Rea Dahlia can be easily propelled with minimum effort as the rear wheels can be moved forward and closer to the arm of the user.

Dahlia in full recline
Light tilt movement

Carer is able to tilt easily with minimum effort. The manual wheelchair Rea Dahlia 45 includes a push up spring making it easier for the chair to come up from a tilted position.

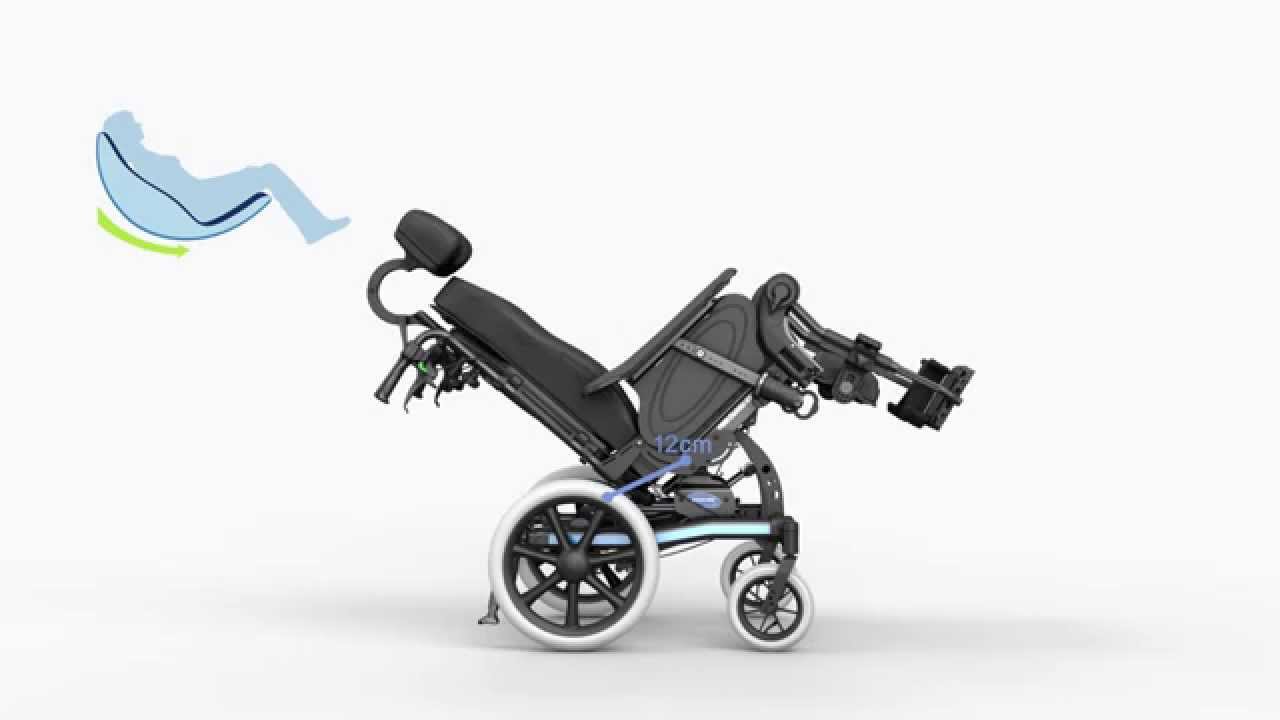

Tilt and recline progressional image
Dual Stability System (DSS)

The Dual Stability System (DSS) allows for body length compensation and so minimises shear, friction and compression.

Rea Dahlia rear view
Compact frame

Overall width is as small as an active wheelchair with a compact base making it easy to get through narrow spaces, such as doorways.

Rea Dahlia lifestyle image
Tilt and recline for pressure relief

Rea Dahlia 45 manual wheelchair allows a 45° tilt angle delivering excellent pressure relieve properties for those patients who are unable to use the recline to weight shift

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

390-440 / 440-490 / 490-540 16” (390-490/ 440-540/ 490-590 mm)

Seat depth

Seat depth

430 - 500 mm

Seat angle

Seat angle

0 - 45°

Seat height

Seat height

350 - 500 mm

Backrest angle

Backrest angle

0° - 30°

Backrest height

Backrest height

500 - 800 mm (without seat cushion)

Length of footrests

Length of footrests

330 - 667 mm

Armrest height

Armrest height

250 - 320 mm

Driving unit width

Driving unit width

SW + 160 mm (16”) / SW + 180 mm (24”)

Total length

Total length

900 - 1195 mm

Total length inc. footrests

Total length inc. footrests

900 - 1195 mm

Total height

Total height

850 - 1250 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

Max 135 kg

Total weight

Total weight

>35 kg

Transport weight

Transport weight

21/25 kg (SW 390 mm) (2)

Crash tested

Crash tested

Frame colour

Frame colour

Black

Colour (other)

Colour (other)

Silver, Blue, Champagne, Red, Petrolium Green

Colour (other)

Comment

Crash-tested ISO 7176-19


  1. Overall weight in seat width 39 cm and with lightest configuration. The E-tilt and Recline option adds 4,2 kg to the transport weight,
  2. Transport weight increases with 4,2 Kg if the E-Tilt & Recline option is used.
