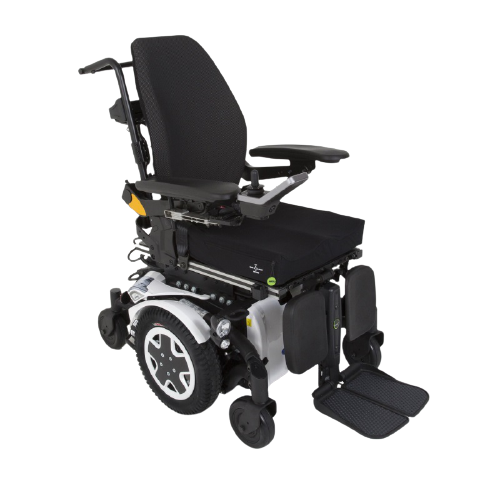

TDX SP2 NB Modulite

The powered wheelchair for children Invacare® TDX® SP2NB Modulite Teen is a 6-wheel chair designed for indoor and outdoor use. This wheelchair is designed for users looking for a chair high on features without compromising on style. Thanks to its compact power base, the TDX® SP2NB Modulite Teen powered wheelchair gives the user greater durability and better performance. In addition, the pivot point located below the user enables intuitive driving and a reduced turning radius, thus providing better maneuverability both indoors and outdoors. The Modulite Teen seat is suitable for children, teenagers and smaller users.

DuraWatt motors
DuraWatt motors
Quiet motors with sealed lifetime brushes reduce potential brush tolerance issues.
True centre wheel drive
True centre wheel drive
Allows excellent manoeuvrability in narrow spaces and ensures an intuitive driving experience.
LiNX controls
LiNX controls
The new Invacare LiNX control system has been specially designed with ease of use, simplicity and reliability in mind. It uses the latest technology to allow for accurate control and a predictable driving experience for the user.
SureStep® and
Stability Lock
SureStep® and
Stability Lock
Allows easy obstacle climbing and guarantees a smooth downward transition.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

Standard : 440/480mm *1 | Modulable : 380/530mm *2 | Maxx :405/610mm

Seat depth

Seat depth

Standard : 410/510mm | Modulable : 410/510/510/560mm *3 | Maxx :380/585mm

Seat height

Seat height

Standard : 450mm *4 | Modulable : 450/475mm *4,5 475/775mm *6 | Maxx : 440/460/480mm

Backrest height

Backrest height

Standard : 480mm *7| Modulable : 480/540/560mm *7 | Maxx : 535/710mm

Armrest height

Armrest height

Standard : 275/340mm | Modulable : 245/310mm | Maxx : 245/310mm

Length of footrests

Length of footrests

Standard : 290/460mm *8 | Modulable : 290/460mm *8 | Maxx : 290/460mm

Seat angle

Seat angle

Standard : 0 - 8° | Modulable : 0-20°/ 0-30° *5 | Maxx : -5°/-55°

Backrest angle

Backrest angle

Standard : 90°/120° | Modulable : 90°/120° | Maxx : 60°/170°

Total height

Total height

Standard : 1010mm *11| Modulable : 1010/1170mm *11 | Maxx : 1080/1535mm

Total length inc. footrests

Total length inc. footrests

Standard : 1160mm *9 | Modulable : 1160mm *9 | Maxx : 1160mm *9

Total length without footrests

Total length without footrests

Standard : 980mm | Modulable : 980mm | Maxx : 980mm

Max. User weight

Max. User weight

Standard : 150kg | Modulable : 150kg | Maxx : 136kg

Battery capacity

Battery capacity

Till 26 km *12

Turning diameter

Turning diameter

1120 mm

Max. climbable obstacle height

Max. climbable obstacle height

75 mm

Max. safe slope

Max. safe slope

9° / 16%

Motor capacity

Motor capacity

2 x 34 W

Battery type

Battery type

50 Ah

Speed

Speed

6 and 10 Km/h

Total weight

Total weight

138 kg *11

Crash tested

Crash tested

Test & Certificates (1)
