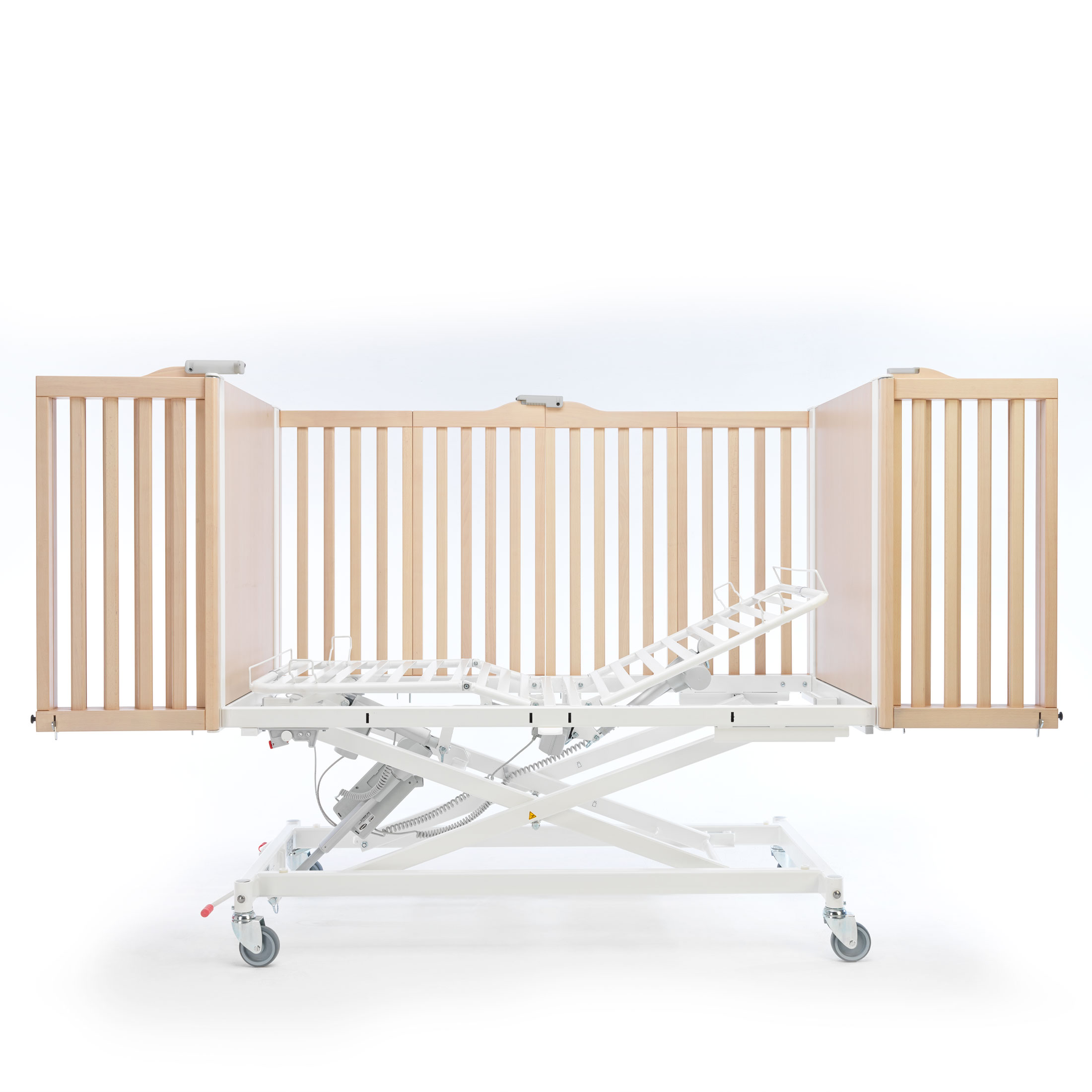

Invacare NordBed Kid medical bed

EU inspirational image NordBed Kid
EU main NordBed Kid image

Safety was at the forefront of the Invacare Nordbed Kid, offering an array of features which meet the new European standard EN 50637:2017. From the safe locking mechanism of the foldable doors, to the holder which securely stows the handset from the child’s reach right through to the significantly increased strength testing of the panelling. Nordbed Kid is height adjustable from 30cm for self-transfers up to an 80cm working height for the caregiver and is available in 3 lengths suitable for children from 3 to 12 years (75-154cm tall). The mattress platform profiling has four segments, designed to anthropometric measurements, which adjust individually for optimum support and comfort. The electrical handset features a magnetic key to prevent tampering whilst the Rastofix is also a manual hand operated option for adjusting Nordbed Kid in 3 reclining positions.

The light and stylish end panels and doors that would complement any modern home—make Invacare Nordbed Kid the perfect choice for pediatric needs. Together with the specifically designed Dacapo Kid mattress, it is the ultimate solution for a homecare environment.

EU gallery image 1
EU gallery image 2
EU gallery image 6
EU gallery image 5
EU gallery image 3
EU gallery image 4
EU gallery image 1
EU gallery image 2
EU gallery image 6
EU gallery image 5
EU gallery image 3
EU gallery image 4
EU gallery image 1
EU gallery image 2
EU gallery image 6
EU gallery image 5
EU gallery image 3
EU gallery image 4

Key Features

  • Height adjustable: It can be easily adjusted from 30cm for self-transfer up to an 80cm working height for the carer.

  • Mattress platform: Anthropometric measurements offer full support.
  • Safe handset storage: The handset that can be easily and safely stowed in its holder at the base of the bed; allowing only the carer to operate.

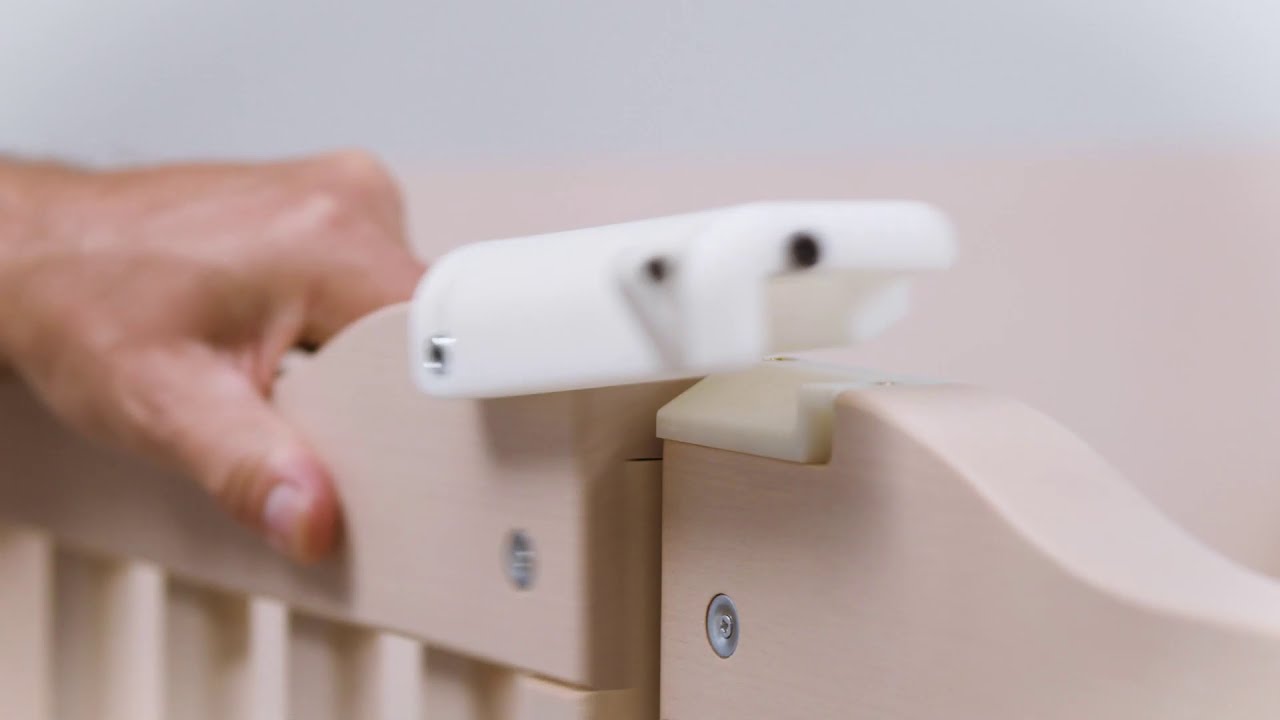

  • Door Latch: It has foldable doors with a top latch lock that makes it easy for the carer to operate. This also ensures there is no risk of injury while in bed.
Optimised mattress platform (optional)
Optimised mattress platform (optional)

Designed in four sections and to anthropometric measurements for optimum comfort and support.

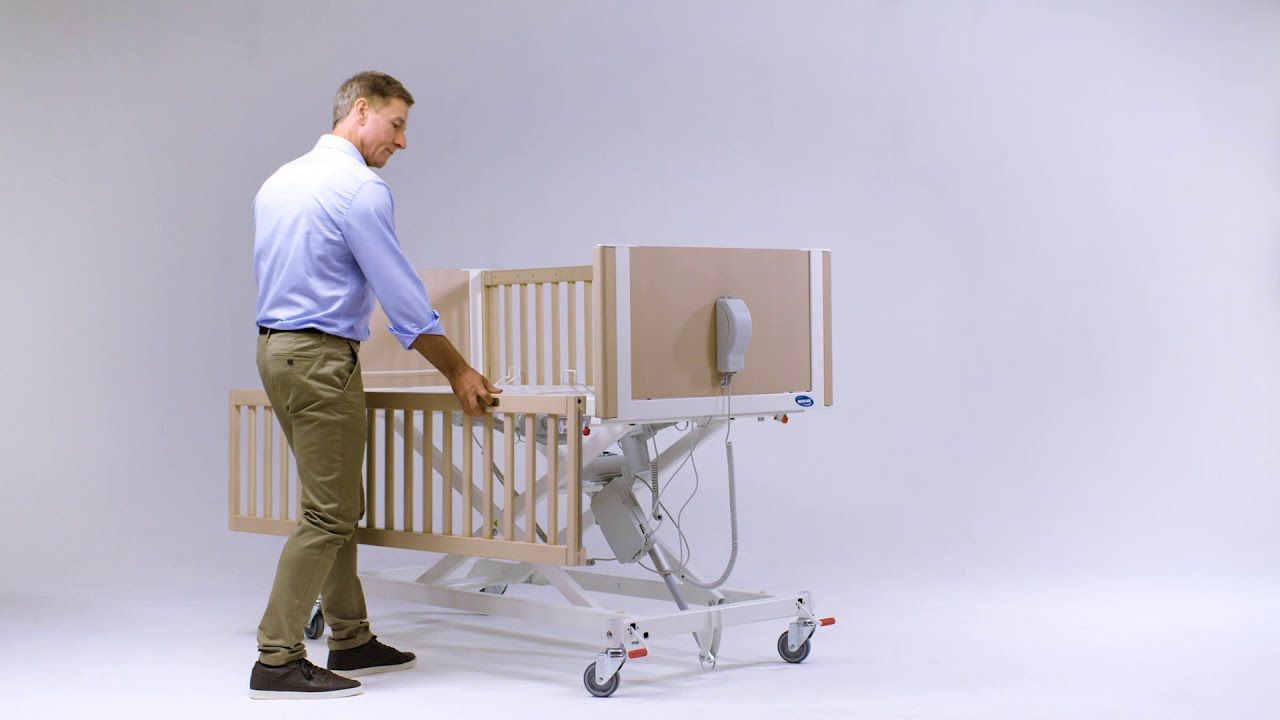

Folding doors
Folding doors

Available in 40 or 80cm, allowing the child to stand upright in the bed. Centre and outer doors for partial and full access complete with safety catches.

Lowering side (optional)
Lowering side (optional)

Allows full and quick access to the child by operating two simultaneous release mechanisms. Also available in perpex for full visibility of the child.

Perspex side rails (optional)
Perspex side rails (optional)

All sides are available in Perspex for full visibility of the child.

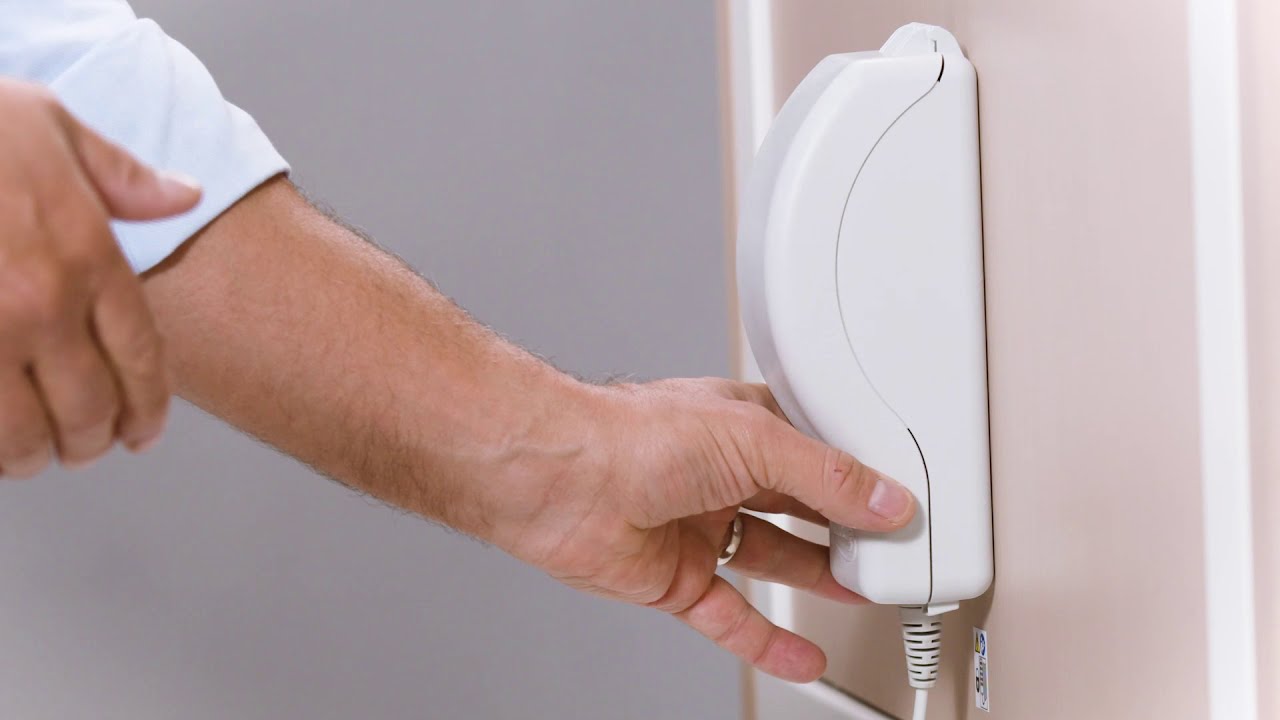

Handset box
Handset box

The handset can be safely stowed away when not in use to prevent unintended use.

Upholstery (optional)
Upholstery (optional)

All sides can be operated without removing the upholstery.

Find Sales Offices

Find your dealer

Search for your nearest Invacare Retailer by completting the fields below.

Dealer map

Search for your nearest Invacare Retailer by completing the fields below.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Specifications & Downloads

Technical data
Technical data
Width outside

Width outside

900 mm

Width inside

Width inside

800 mm

Length outside

Length outside

1460 mm (1), 1660 mm (2), 1850 mm (3)

Length inside

Length inside

1400 mm (1), 1600 mm (2), 1790 mm (3)

Height adjustment

Height adjustment

30 - 800 mm (1), 31 - 800 mm (2), 32 - 800 mm (3)

Mattress support dimensions

Mattress support dimensions

620-70-160-480 mm, 670-130-180-550 mm, 780-150-230-570 mm

Ground clearance

Ground clearance

150 mm

Backrest angle

Backrest angle

70⁰

Thigh angle

Thigh angle

0-12⁰

Legrest lift

Legrest lift

0-24⁰ (1), 0-30⁰ (2), 0-30⁰ (3)

Max. User weight

Max. User weight

70 kg

Total weight

Total weight

86 kg (1), 95 kg (2), 97 kg (3)

The heaviest part

The heaviest part

53 kg (1), 55 kg (2), 55 kg (3)

Washable in washing machine

Washable in washing machine

No

Max. cleaning temperature

Max. cleaning temperature

40⁰ C

Frame colour

Frame colour

Traffic white

Frame colour and wood work

Frame colour and wood work

Beech (wood)

Frame colour and wood work

Comment

  1. Invacare NordBed Kid - Small
  2. Invacare NordBed Kid - Medium
  3. Invacare NordBed Kid - Large
