Rea Azalea Minor

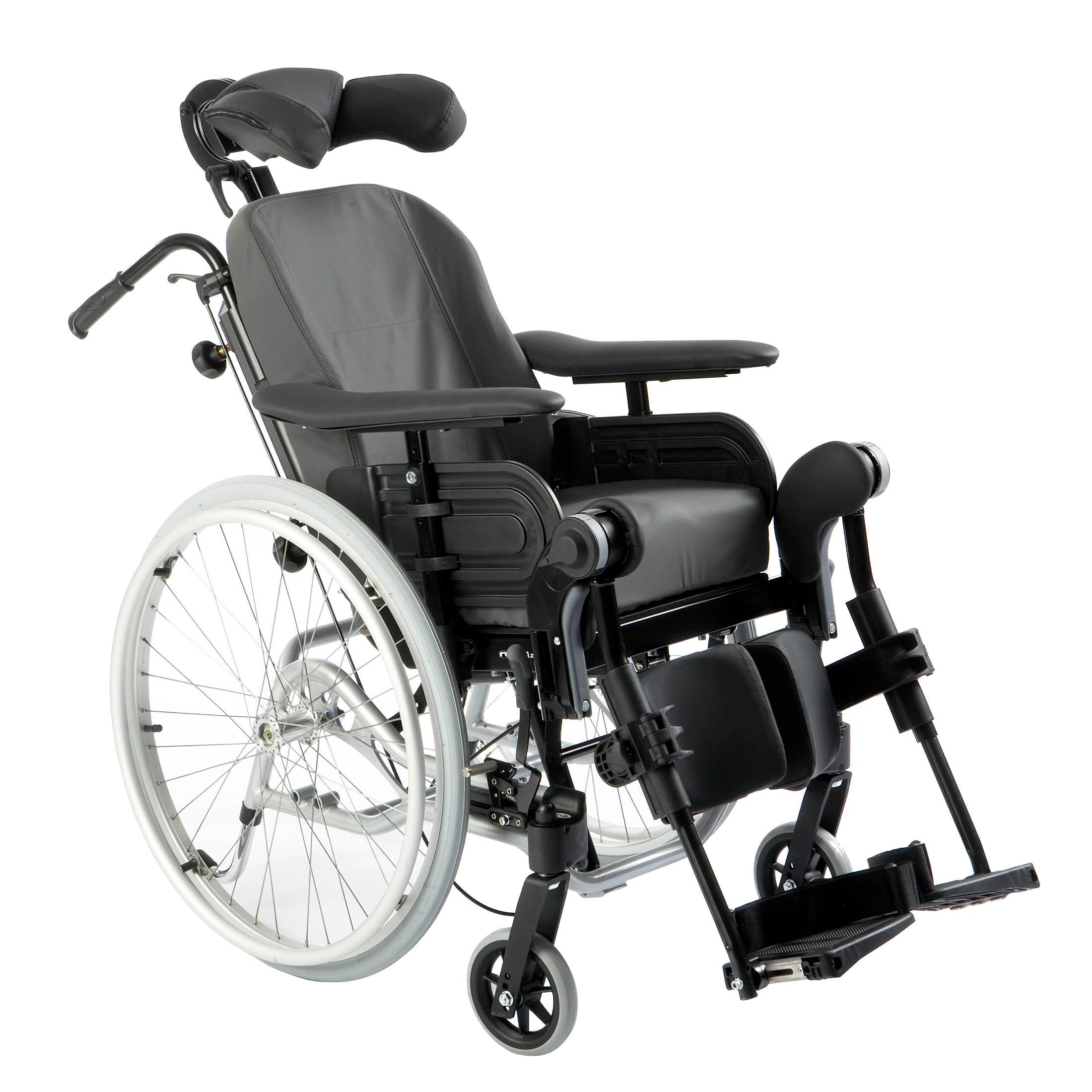

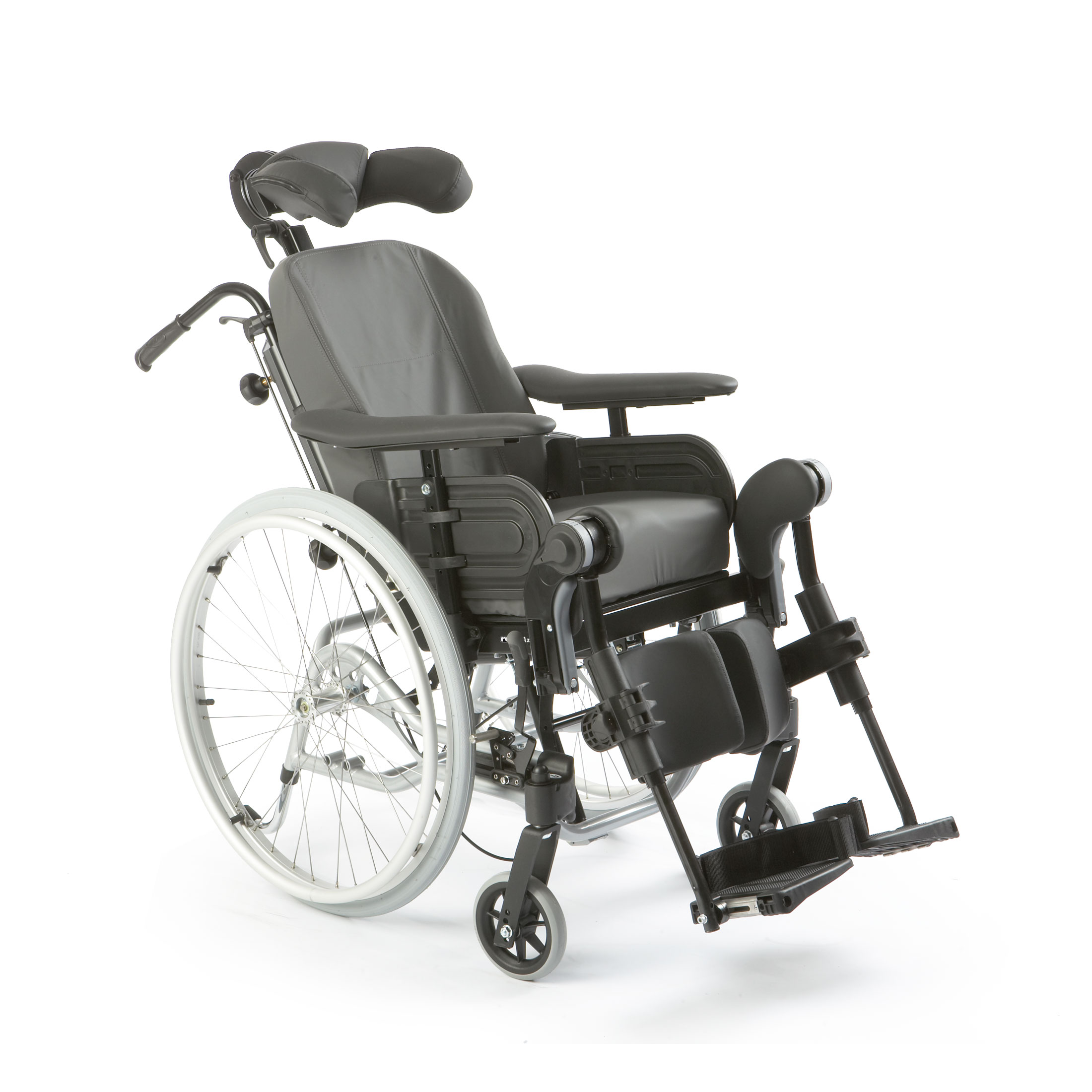

The Rea Azalea Minor manual wheelchair is designed for people who require a smaller seat depth and width and is ideal for those requiring a solid and stable tilt-in-space wheelchair. As an adapted version of a passive manual wheelchair, the Rea Azalea Minor boasts all the same advantages of this reliable Rea Azalea with our special weight shifting mechanism and is available with transit or self-propel wheels, five frame colours and three upholstery choices.

Stability is a strong feature of the Rea Azalea Minor manual wheelchair, delivering exceptional safety and confidence for the client with our unique DSS (Dual Stability System) built into every passive manual wheelchair. When tilting and reclining, the seating system moves forward and down inside the frame. This weight shifting guarantees exceptional stability is maintained, even when in full tilt and recline. Additionally, the pivot points of the Rea Azalea match the natural pivot points of the person for synchronised movement between the body and the manual wheelchair, reducing the risk of shear and pressure.

Rea Azalea
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea Minor
Rea Azalea Minor

Key features of Rea Azalea Minor manual wheelchair:

  • Flex 3 backrest plate: Sturdy and adaptable, the Flex 3 backrest plate provides support, with both width and height adjustment. Available with a range of postural support cushions
  • Flex 3 tension adjustable backrest: Built to accommodate more complex spinal shapes, it offers multiple adjustments suitable for all body shapes and sizes. Available with a padded cover to compliment the contours of the tension straps or a range of postural support cushions
  • Wide range of options: In addition to the multiple adjustments of the chair, the Rea Azalea boasts a large assortment of options, guaranteeing a solution for a wide range of postural challenges.
  • Seat tilt and backrest recline: The Rea Azalea Minor Manual wheelchair features 25-degrees of seat tilt and 30-degrees of backrest recline to support a range of positioning requirements
  • Rear wheels: Transit wheels are available for attendant propulsion, or a variety of self-propel wheels are possible for a moderately active individual using a manual wheelchair.
Dual Stability System (DSS)
Dual Stability System (DSS)

Increased performance of the tilt function offers superb pressure redistribution and reduces shear forces.

Flex 3 back support
Flex 3 back support

Sturdy and adaptable. Available with a range of postural support cushions.

Wide range of options
Wide range of options

Customise and adapt the wheelchair as required for appropriate support, depending on the evolution of the patient’s condition.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Rea Options Tool
Rea Options Tool
Configure your
Rea wheelchair
View the options and possibilities
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

340 - 440 mm

Seat depth

Seat depth

380 - 450 mm

Seat angle

Seat angle

+1° to 25°

Seat height

Seat height

400/450 mm

Backrest angle

Backrest angle

0°-30°

Backrest height

Backrest height

550 - 650 mm

Armrest height

Armrest height

240 - 360 mm

Driving unit width

Driving unit width

SW + 220 mm (SW + 230 mm)

Total length inc. footrests

Total length inc. footrests

900 - 970 mm

Total height

Total height

900 - 1250 mm

Max. User weight

Max. User weight

75kg

Total weight

Total weight

32 kg

Transport weight

Transport weight

14.5 kg (1)

Crash tested

Crash tested

Frame colour

Frame colour

Pearl Grey, Azurite Blue, Sand, Happy Red, Electric Green

Frame colour

Comment

Crash tested to ISO 7176-19


(1) Transport weight increases with 4,2 Kg when the Power tilt & Recline option is used
