Rea Azalea Tall lifestyle image

Unlike the “standard” Rea Azalea which can be too low for a taller person due to the weight shift, Rea Azalea Tall is specifically designed to meet the needs of tall people who require a tilt-in-space wheelchair. It offers a longer seat support and the extra 50mm of height in the frame, allowing for longer legrests. The extra 50mm in chassis length also enables greater forward stability.

Adapted from the standard Rea Azalea model, the Rea Azalea Tall boasts all the advantages of a reliable, tilting wheelchair but with added support. For additional safety and confidence for the client, the unique Dual Stability System (DSS) of the Rea Azalea incorporates weight shifting when tilting and reclining, to ensure stability is maintained. Pivot points on the chair closely match the natural pivot points of the person, ensuring synchronised movements between the client and the chair, greatly reducing the risk of shear during tilt and recline. It comes with a fantastic Flex 3 seating system, that is designed to be adaptable due to its wide choice of support options, and the adjustment it allows. The standard Azalea can also be easily reconfigured to suit a taller person with the Rea Azalea ‘Tall kit’.

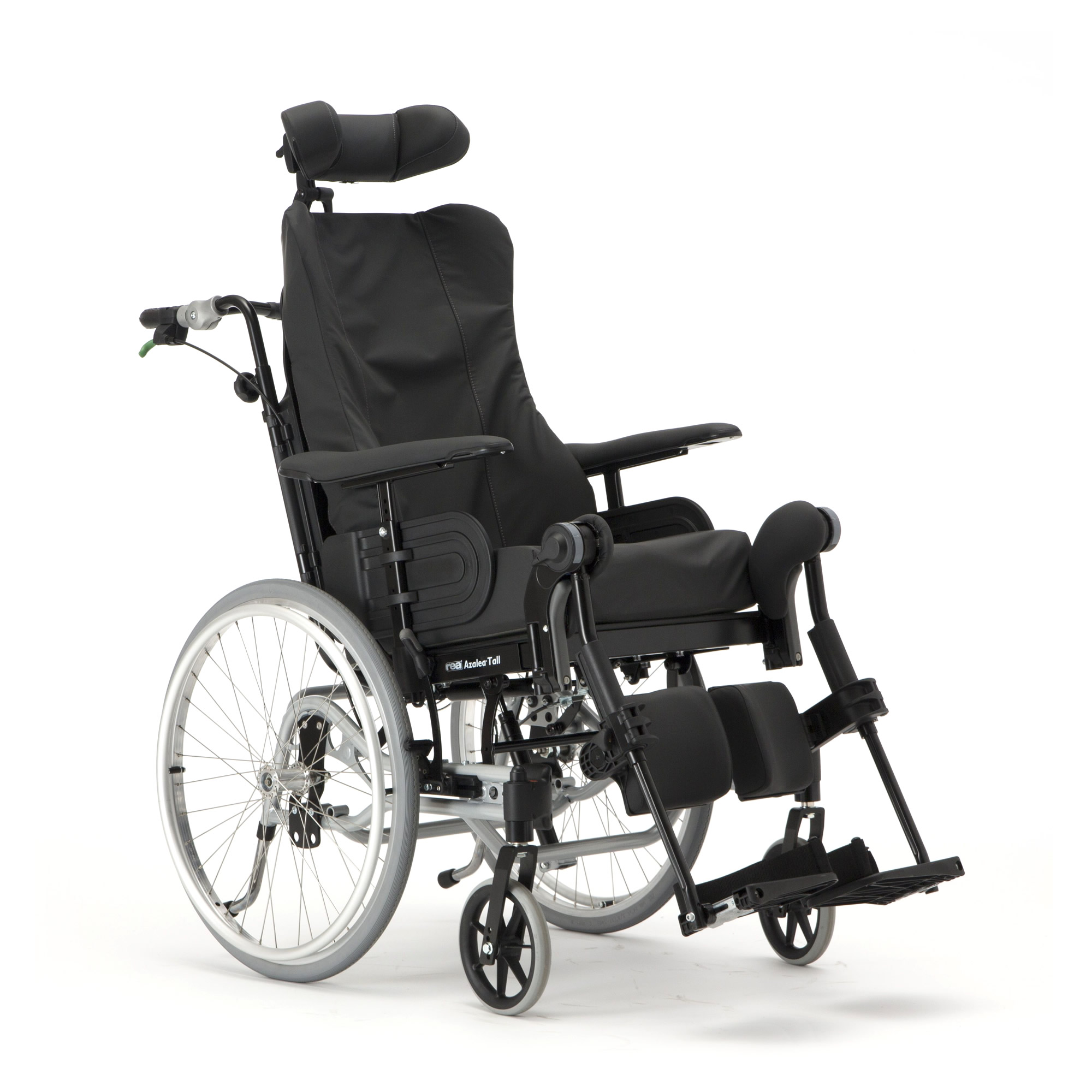

Rea Azalea Tall side on view
Rea Azalea Tall side on view in recline
Rea Azalea Tall 3/4 angle view
Rea Azalea Tall front view
ReA Azalea tall rear view
Rea Azalea Tall side on view
Rea Azalea Tall side on view in recline
Rea Azalea Tall 3/4 angle view
Rea Azalea Tall front view
ReA Azalea tall rear view
Rea Azalea Tall side on view
Rea Azalea Tall side on view in recline
Rea Azalea Tall 3/4 angle view
Rea Azalea Tall front view
ReA Azalea tall rear view

Key Features:

  • True compatibility: the Rea Azalea Tall passive wheelchair by Invacare offers all the features of the Rea Azalea, including tilt-in-space weight-shifting for a truly stable tilt.
  • Easy maneuverability: the adjustable push bar is designed with the carer in mind – it’s adjustable and offers a good ergonomic grip.
  • Especially designed for tall users.
  • Improved Flex 3 backrest: adds individual adaptability.
  • Seat height: an extra 50mm of height allows for longer legrests.
  • Chassis length: an extra 50mm in length enables greater forward stability.
  • Adapts easily to a variety of seat moulds: the seat width can be adjusted from the arm and leg rests.
  • Longer seat plate: an extra 50 mm of seat depth is designed to support longer legs.
  • Optional harness attachment.
  • Frame comes in 5 available colours: Pearl Grey, Azurite Blue, Sand, Happy Red and Electric Green.
  • Upholstery comes in 3 available colours: Black Dartex, Black Plush and Black Spacer.
Real compatibility
Real compatibility

The Rea Azalea Tall has all the features of the Rea Azalea such as tilt-in-space weight-shifting for a really stable tilt.

Easy manoeuvrability
Easy manoeuvrability

Attendants will appreciate the adjustable push bar, which offers good ergonomic grip and can be adopted to fit the height of the attendant, making the chair easier to manoeuvre.

Longer seat plate
Longer seat plate

An extra 50 mm of seat depth is designed to support longer legs.

Chassis length
Chassis length

An extra 50 mm in length enables greater forward stability.

Seat height
Seat height

An extra 50 mm of height allows for longer legrest.

Leave us a message

We will be happy to help you! If you wish to contact us feel free to fill in the below. We will reply very soon. Note that the personal data you will provide will not be used or stored unless you would like to stay connected. Feel free to read more about our Invacare Privacy Policy at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Rea Options Tool
Rea Options Tool
Configure your
Rea wheelchair
View the options and possibilities
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

390-450/440- 500/490-550 mm 390-490/440- 540/490-590 mm

Seat depth

Seat depth

480 - 550 mm

Seat angle

Seat angle

-1° to 23° (+1° to 25°)

Seat height

Seat height

500 mm

Backrest angle

Backrest angle

0°-30°

Backrest height

Backrest height

Backrest plate: 560 - 790 mm Tension adjustable backrest: 540 - 715 mm

Armrest height

Armrest height

240 - 360 mm

Driving unit width

Driving unit width

SW + 220 mm (SW + 230 mm)

Total length inc. footrests

Total length inc. footrests

950 - 1085 mm

Total height

Total height

1000 - 1300 mm

Max. User weight

Max. User weight

135 kg

Total weight

Total weight

34 kg (SW 440 mm)

Transport weight

Transport weight

18.7 kg (1)

Crash tested

Crash tested

Frame colour

Frame colour

Pearl Grey, Azurite Blue, Sand, Happy Red, Electric Green

Frame colour

Comment

(1) Transport weight increases with 4.2 kg when the Power tilt & Recline option is used

User Manual (1)
Test & Certificates (1)
Miscellaneous (1)
Miscellaneous (1 archive)
